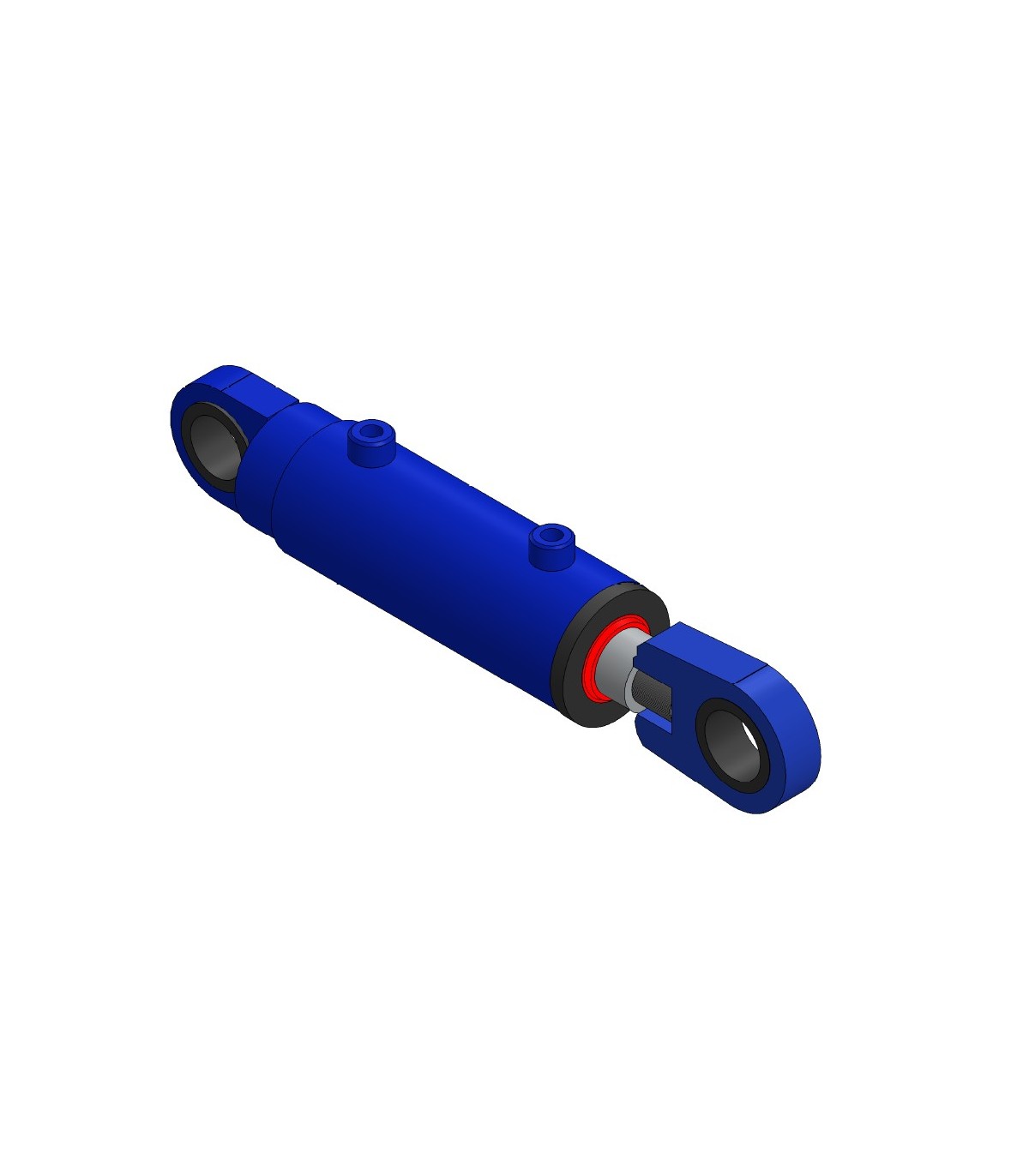

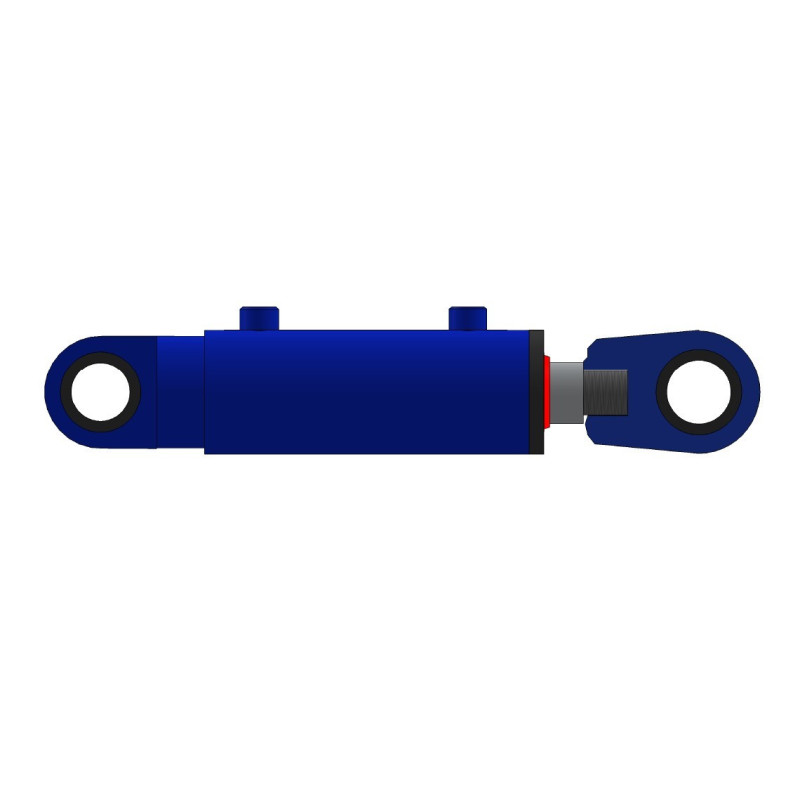

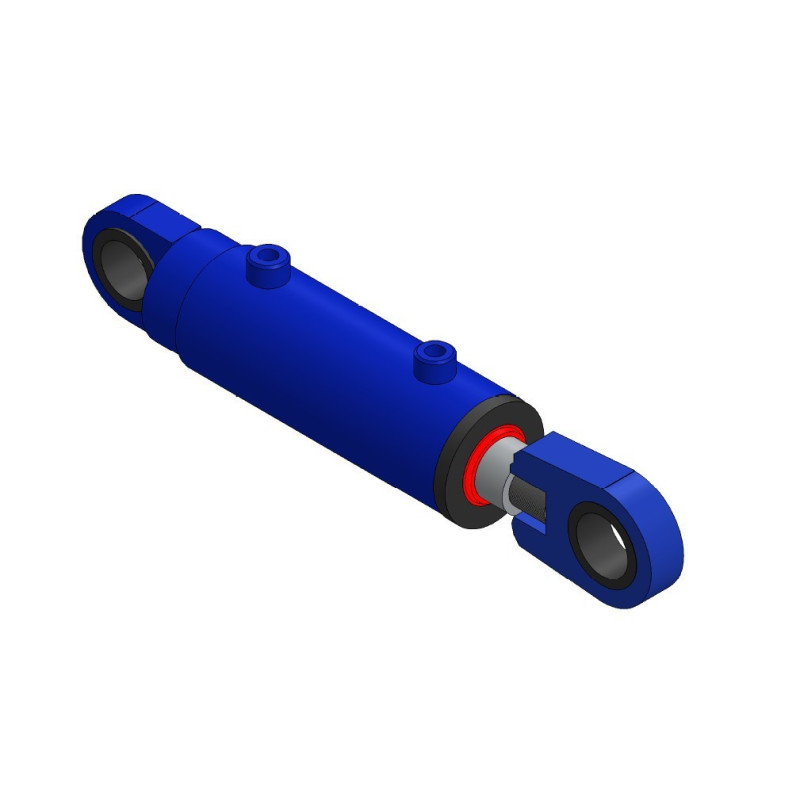

Double Acting Hydraulic Cylinder 70-40-950
Double Acting Hydraulic Cylinder with ball joints.
- ØA (Rod): 40 mm
- ØB (Piston): 70 mm
- Stroke: 950 mm.
- Force at 200 bar: 7696.90 Kg
- Force at 200 bar: 5183.63 Kg

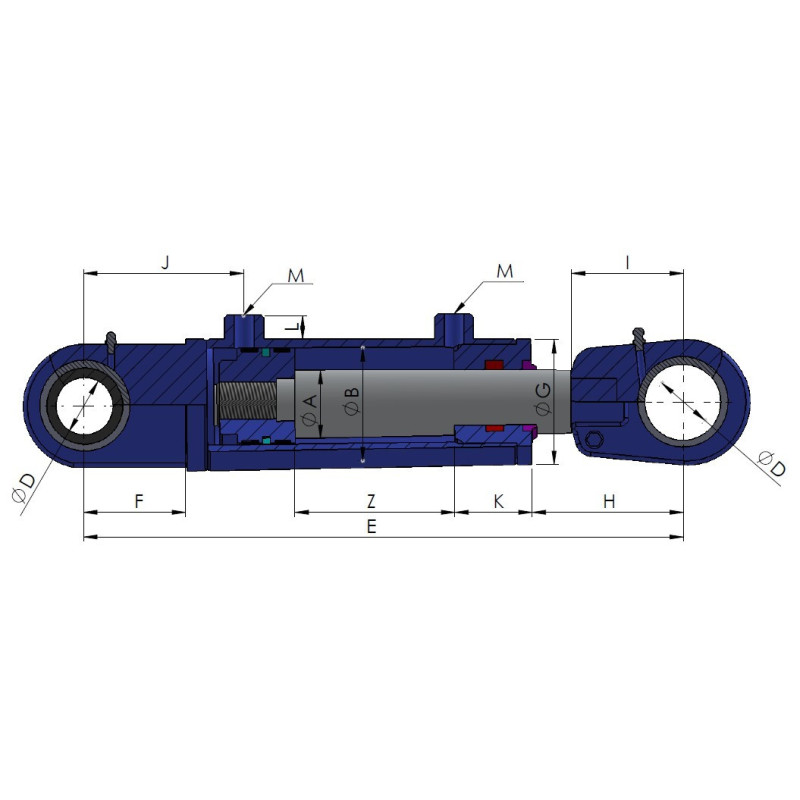

SERIE 5
|
Z |
M | ||||||||||||||||
| REF. | ØA | ØB | Stroke | E | C | D | F | G | H | I | J | K | L | BSP | Vol. (L) | Joints | Weight |
| 5-407-95 |
40
|
70
|
950 | 1220 |
30
|
35
|
61
|
80
|
95
|
70
|
94
|
49
|
15
|
3/8
|
3.64 |
J74N
|
24.96 |
