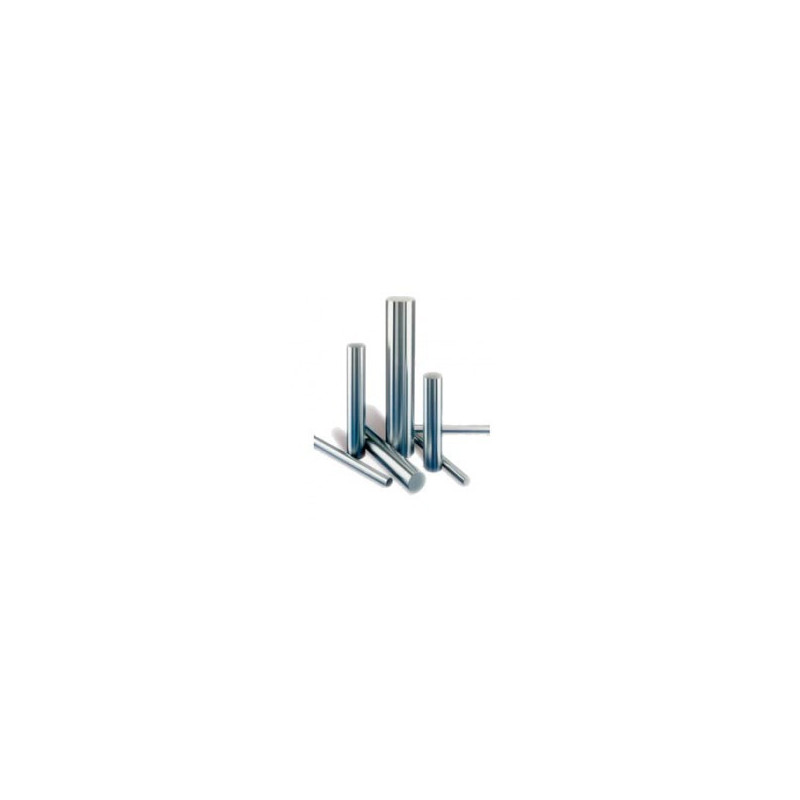

25 mm F-114 Chrome Plated Bar, h7 Induction hardened

Chrome Plated Bar Ø25 mm h7 Ck45 (F114)

• Outside diameter. 25 mm.
• Outside tolerance. ISO h7
• Steel grade:  Ck45 (F114).
• Induction hardened.
• Outside cover: Hard chrome.
• Chrome layer thickness: 25±5 µm.
• Coating hardness: 900-1150 HV(0,1).
• Resistance to corrrosion: Min. 200 h NSS .> ISO9227.
• Surface roughness: Ra< 0,2µm Rt <0,2 µm.-> ISO 4287-1.
• Straightness rectitude: 1mm/m.
• Breaking load: 650-830 N/mm2.
• Yield strenght: min. 440N/mm2.
• Minimum elongation: 15%
• Weight: 3.85 Kg/Mt
