Single Acting Standard Cylinders Series 1&2

Single Acting Standard Cylinders Series 1&2
Single Acting Standard Cylinders Series 1&2
1 Review

Single acting hydraulic cylinder. ID diameter from 25 to 70 mm.

Read more
€73.93 (tax excl.)
Carrera
In stock
Share
QR code
Reference:
1-40-20
Brand:
Provectus
Add to wishlist
Related products
Description

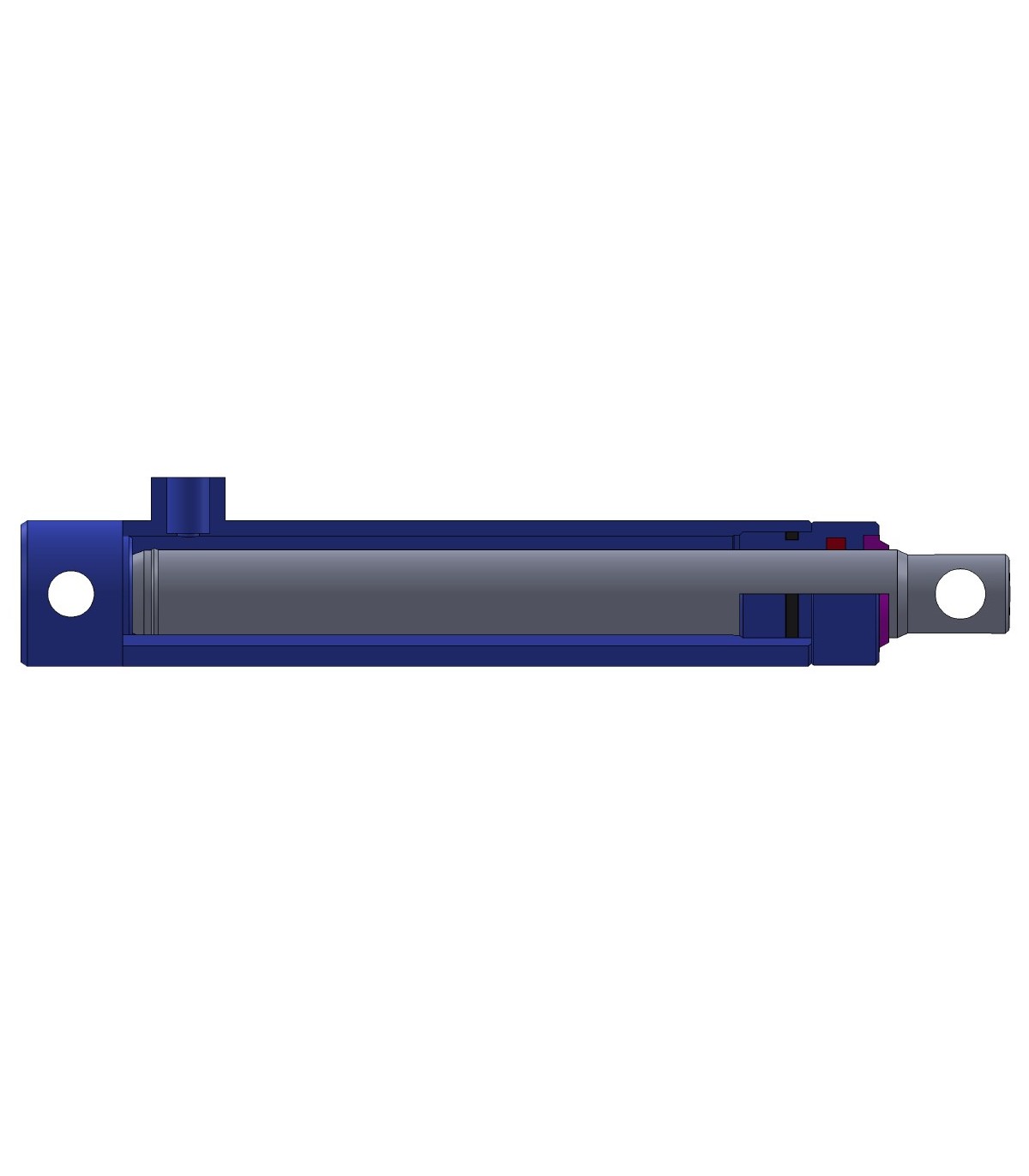

Single Acting Hydraulic Cylinder

- 1 Series: Diameters ranging from 25 to 40.

- 2 Series: Diameters ranging from 45 to 70.



1 SERIES

width=

2 SERIES

width=

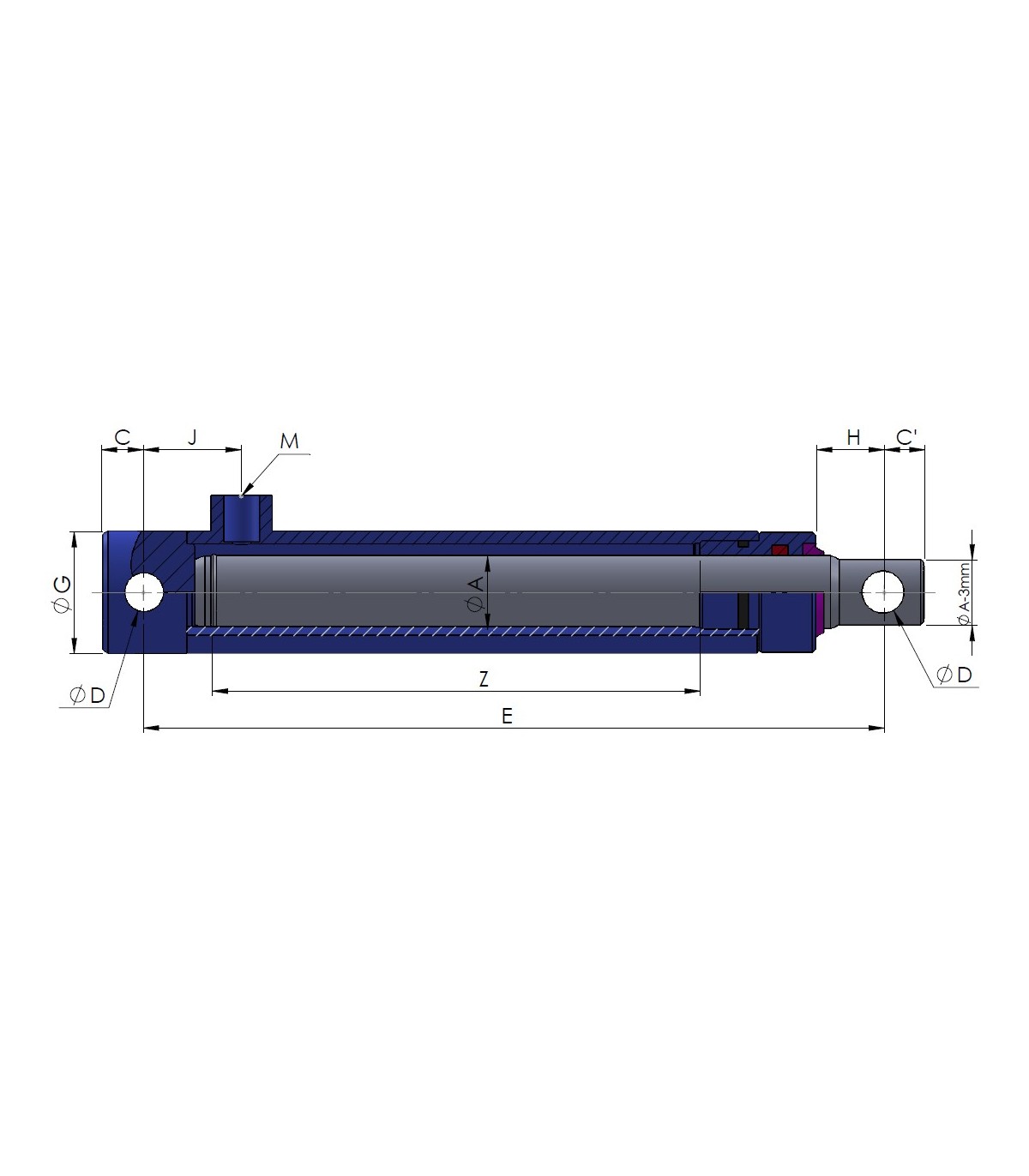

    Z                   M
REF. ØA Stroke E C/C' D G H J O P L BSP Vol. (L) Seals Wieght(kg)
1-25-10 25 100 190 14/14 14,2 40 24 40     9,5 1/4 0,08 J625 1,5
1-25-20 200 290 0,16 2,3
1-25-30 300 390 0,24 3

1-30-20 30 200 300 17,5/16 16,2 50 26 42     15 3/8 0,25 J630 3,6
1-30-30 300 400 0,38 4,7
1-30-40 400 500 0,5 6
1-30-55 550 650 0,69 7,6
1-30-70 700 800 0,88 9,4

1-35-20 35 200 330 22/20 20,25 55 32 47     15 3/8 0,32 J635 4,7
1-35-30 300 430 0,48 6,1
1-35-40 400 530 0,64 7,5
1-35-55 550 680 0,87 9,6
1-35-70 700 830 1,11 11,7

1-40-20 40 200 330 22/22 23 60 32 47     15 3/8 0,39 J640 6
1-40-30 300 430 0,59 7,6
1-40-40 400 530 0,79 9,3
1-40-50 550 680 1,08 11,7
1-40-70 700 830 1,37 14,2

2-45-20 45 200 330 22/22 23 60 34 47 70 77 15 3/8 0,39 J645 7
2-45-30 300 430 0,59 8,9
2-45-40 400 530 0,79 10,9
2-45-50 550 680 1,08 13,7
2-45-70 700 830 1,37 16,7

2-50-20 50 200 360 25/25 25,25 65 49 50 75 80 15 3/8 0,48 J650 8,9
2-50-30 300 460 0,71 11,2
2-50-40 400 560 0,95 13,5
2-50-55 550 710 1,31 16,8
2-50-70 700 860 1,66 20,4

2-55-30 55 300 460 22/25 25,25 70 41 50 85 95 15 3/8 0,85 J655 13,6
2-55-55 550 710 1,56 20,1
2-55-70 700 860 1,98 24,2

2-60-20 60 200 360 25/25 25,25 75 36 50 90 95 15 3/8 0,66 J660 12,6
2-60-30 300 460 1 15,7
2-60-40 400 560 1,33 18,7
2-60-55 550 710 1,83 23,3
2-60-70 700 860 2,32 28,4

2-70-30 70 300 495 28/28 30,5 90 50 58 108 110 17 1/2 1,33 J670 25,1
2-70-40 400 595 1,77 29,6
2-70-55 550 745 2,43 36,5
2-70-70 700 895 3,09 43,4
Return and refund policy

Being a standard product, the user will have 15 calendar days from receipt to exercise his right to return the product as long as it is returned in its original packaging, without having been used, damaged or modified.

In case of return of the product, the user will cover the shipping and return costs. The refund only includes the total amount of the product including VAT.

Products that have been cut to length, custom made and/or imported exclusively for the customer, will not be returned and/or refunded unless it is a manufacturing failure. It does not matter if the delivery time suffers delays of any kind.

Read more
Product Details
1-40-20

Data sheet

Outside finishing:
Imprimación
Country
España
Presión máxima
200 bar
Velocidad máxima de uso
0,5 m/s
Temperatura de trabajo
-30 ºC a +90ºC
Presión máxima de prueba
300 bar

Specific References

ean13
5021325262350
