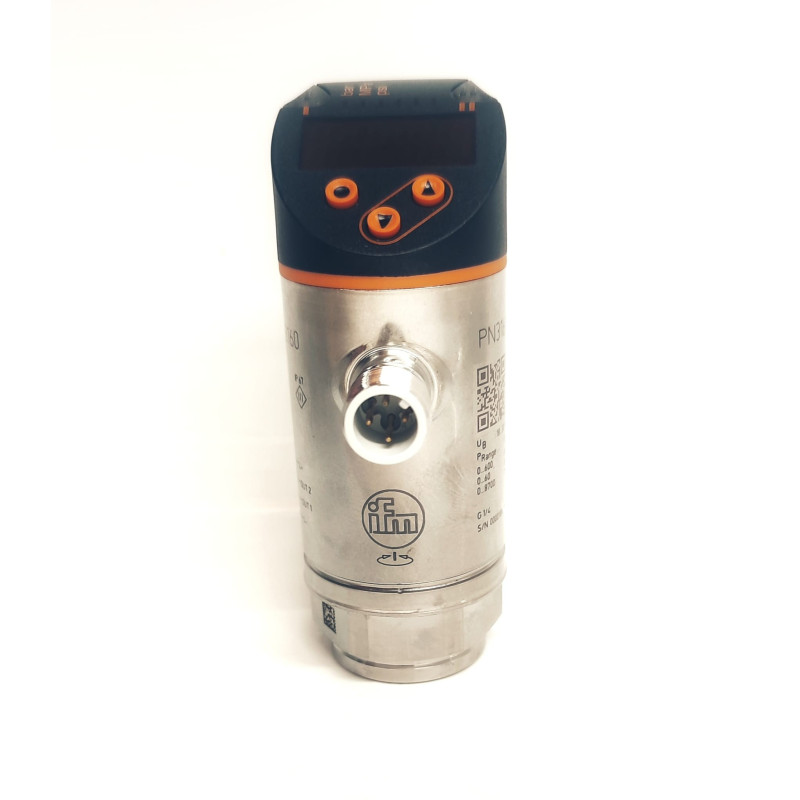

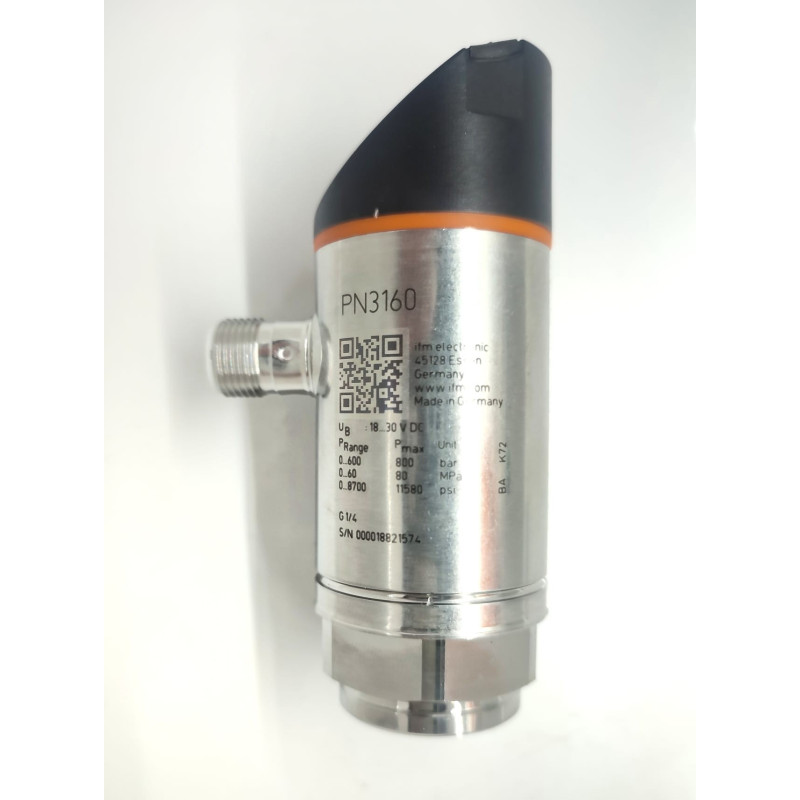

Pressure switch 0-600 bar with Display, IFM model PN3160
0/5
- Display
- 0...600 bar
- NO/NC programmable: 4-20 mA/0-10 V
- DC PNP
- IO-Link
- Process connection: G 1/4 female
- Protection rating: IP65/IP67
- M12 connector
€635.35
Tax included
Pressure switch 0-600 bar with Display
- Pressure range: 0-600 bar.
- Accuracy <±0,5%.
- Pressure resistance: 800 bar
- Process connection: BSP 1/4" (GAS) female.
- Material of the process connection: Satainless steel 1.4542
- Housing material: 1.4542/1.4404 (Stainless steel AISI316L)
- Operating voltage min: 18 V.
- Operating voltage max: 30V
- Type of voltage: DC
- Output 1: PNP
- Output 2:0-10 V, 4-20mA
- Process temperature min.: -25ºC
- Process temperature max: 80ºC
- Protection ration IP65/IP67
- Interfaces: IO-Link
- Tariff number: 90262020
Categoría Pressure Switches Referencia PN3160-IFM
