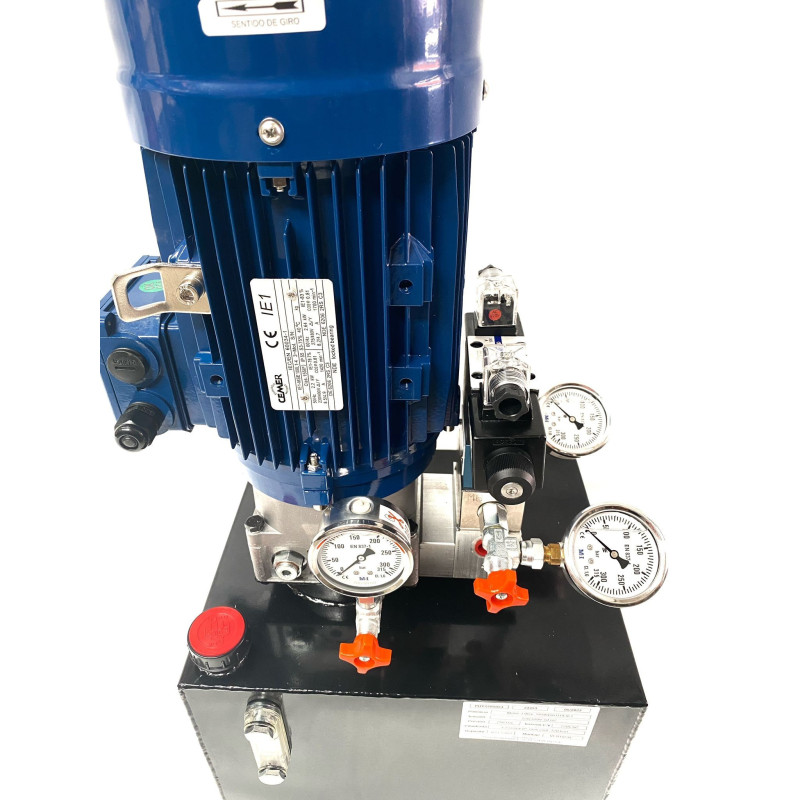

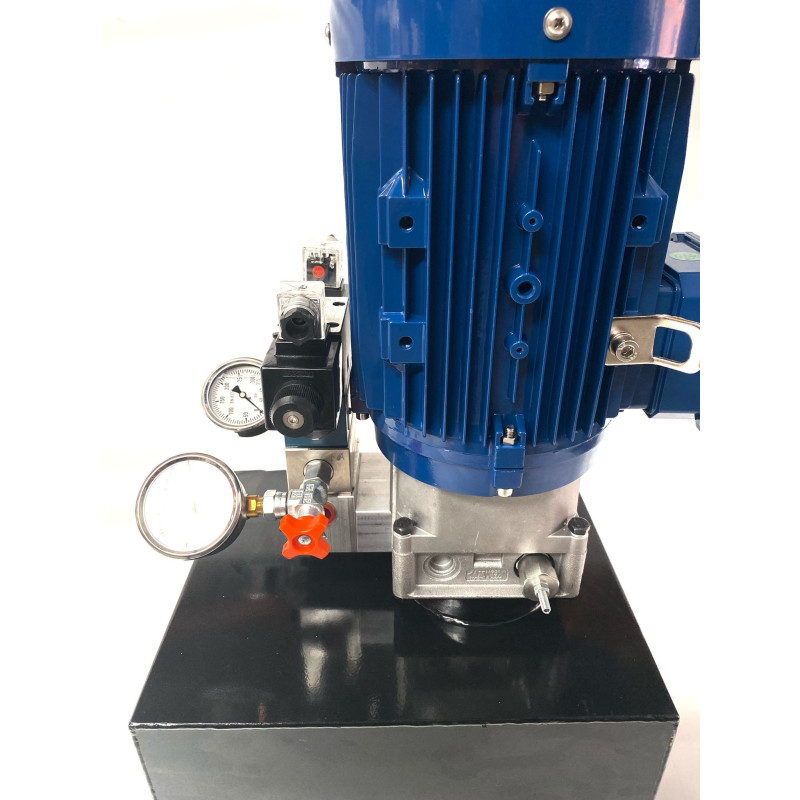

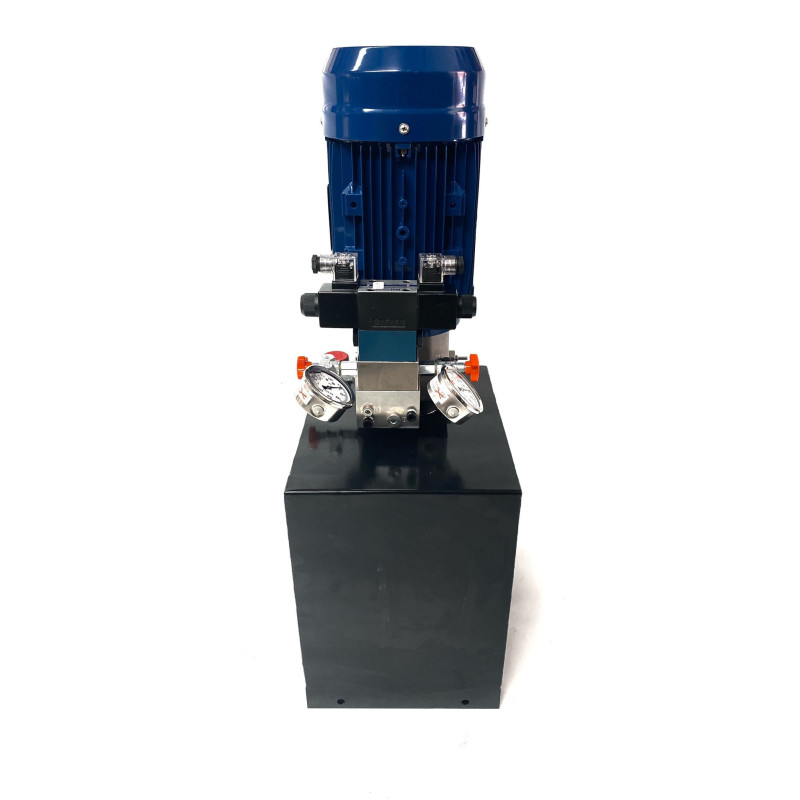

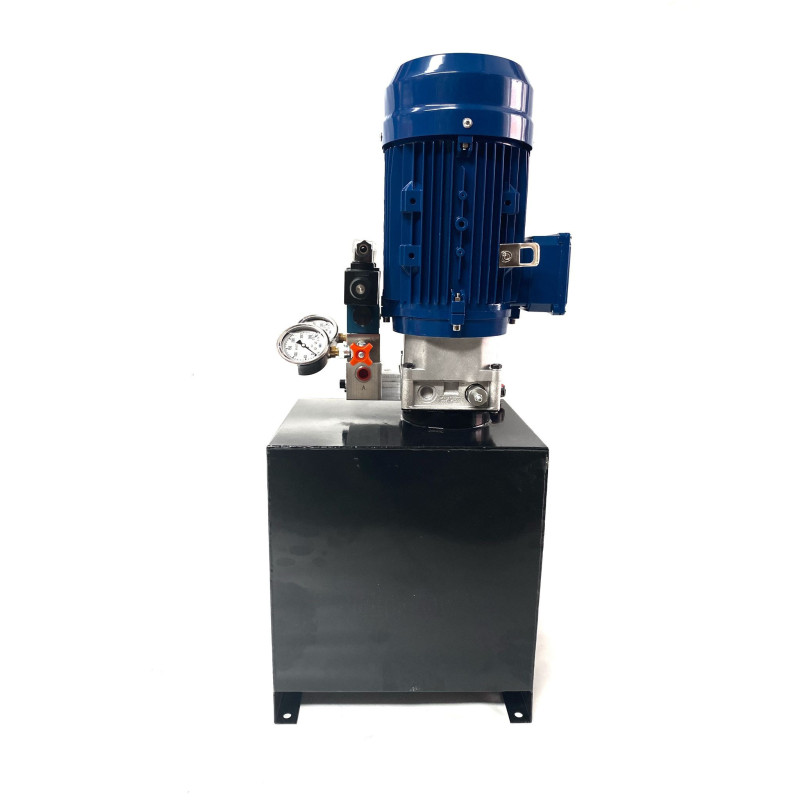

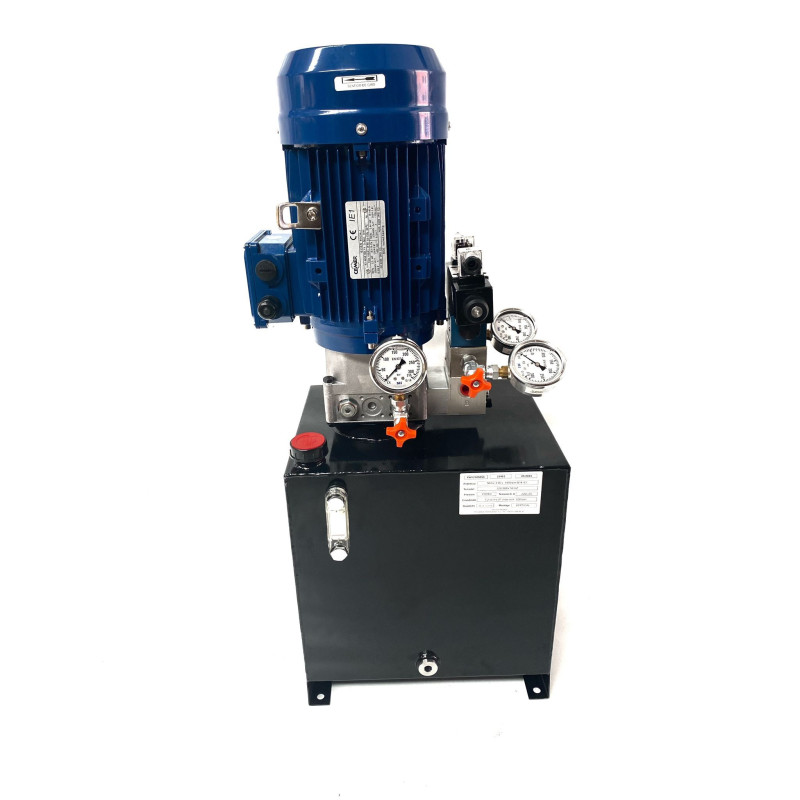

Hydraulic Power Pack 1 Cv 3 phases, 3,08 L/min, 100 bar.
Hydraulic Power Pack 1 Cv 3 phases, 3,08 L/min, 100 bar.
Hydraulic Power Pack 1 Cv 3 phases, 3,08 L/min, 100 bar.
Hydraulic Power Pack 1 Cv 3 phases, 3,08 L/min, 100 bar.
Hydraulic Power Pack 1 Cv 3 phases, 3,08 L/min, 100 bar.
Anterior
Siguiente
Hydraulic Power Pack 1 Cv 3 phases, 3,08 L/min, 100 bar.
Hydraulic Power Pack 1 Cv 3 phases, 3,08 L/min, 100 bar.
Hydraulic Power Pack 1 Cv 3 phases, 3,08 L/min, 100 bar.
Hydraulic Power Pack 1 Cv 3 phases, 3,08 L/min, 100 bar.
Hydraulic Power Pack 1 Cv 3 phases, 3,08 L/min, 100 bar.

Hydraulic Power Pack 1 Cv 3 phases, 3,08 L/min, 100 bar.

0/5
  • -Electric motor 1 CV, triphasic 220/380 VAC.
  • -Hydraulic pump 2.2 cc/rev (3,08 L/min @ 1390 RPM)
  • -Max pressure: 124 bar.
  • -Solenoid Valve 4 ways, 3 positions, close centre, 24 VDC.
  • -Pressure gauges 0-160 bar general pression.
  • -Pressure gauge extruder
  • -Rectangular 8 L tank.

  • -Electric motor 1 CV, triphasic 220/380 VAC.
  • -Hydraulic pump 2.2 cc/rev (3,08 L/min @ 1390 RPM)
  • -Max pressure: 124 bar.
  • -Solenoid Valve 4 ways, 3 positions, close centre, 24 VDC.
  • -Pressure gauges 0-160 bar general pression.
  • -Pressure gauge extruder
  • -Rectangular 8 L tank.

Using this hydraulic power unit in conjunction with a hydraulic cylinder with a piston bore of 115 mm and a stroke of 100 mm, the cylinder will complete its stroke in 27.2 seconds.

Categoría Power Units Referencia PHY2309344
