Mini hydraulic power unit, 24 vdc electric motor, 2200 w,

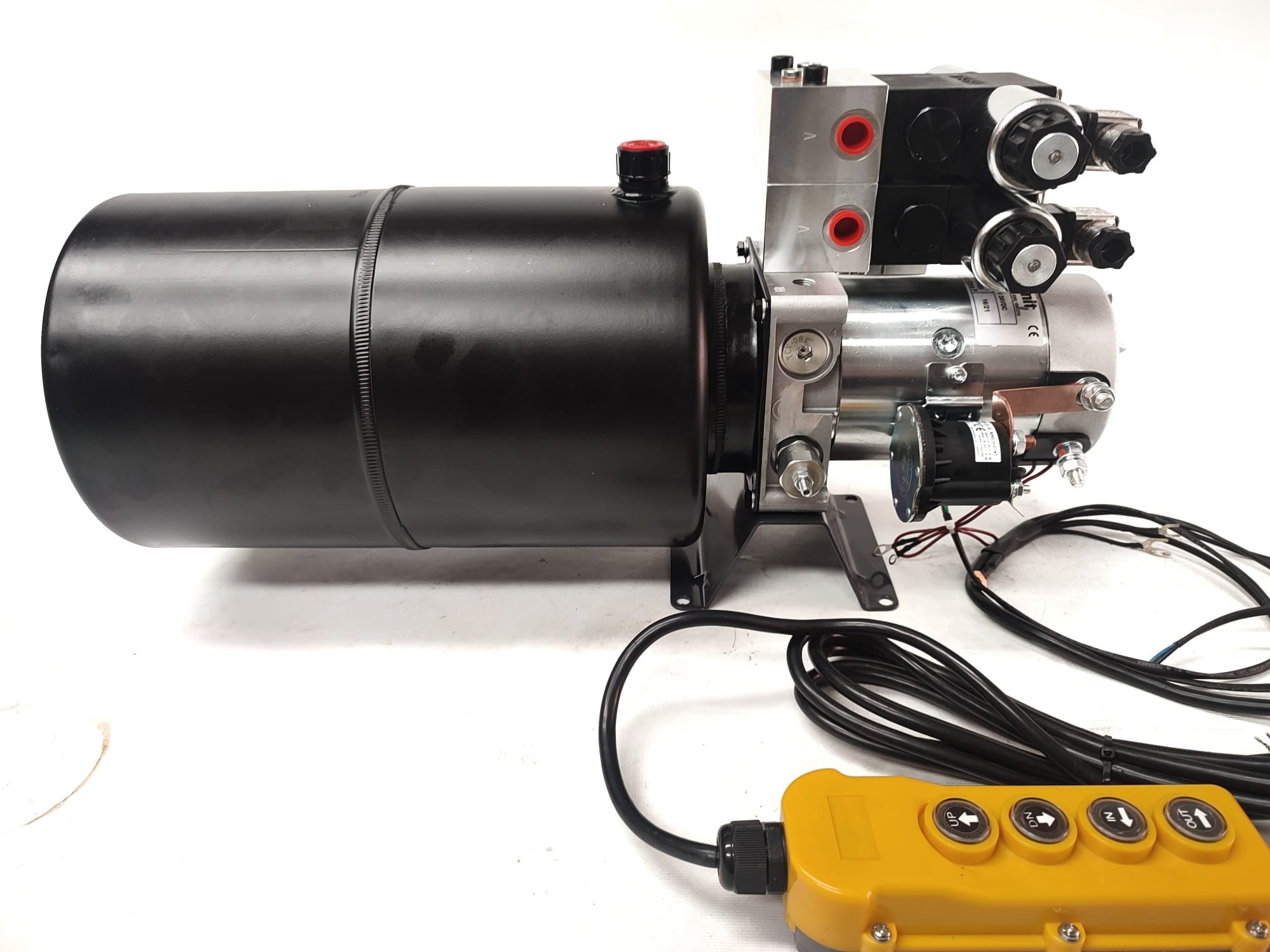

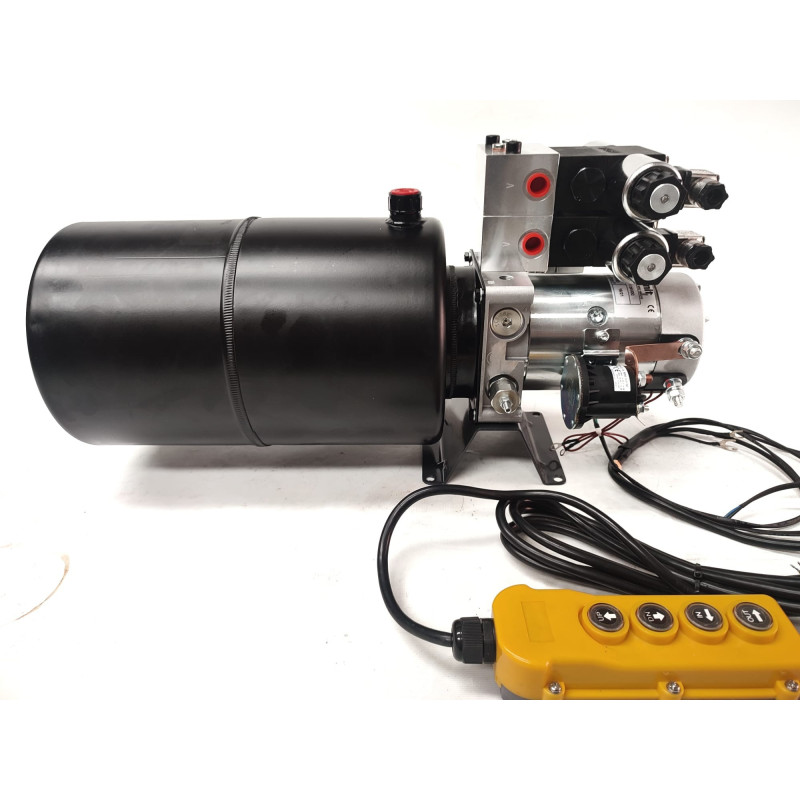

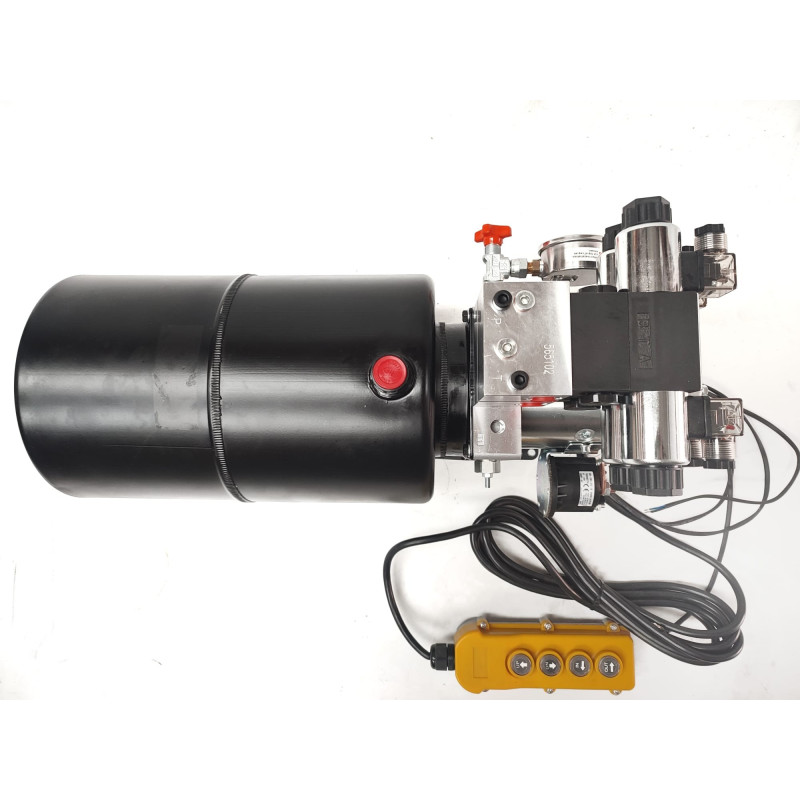

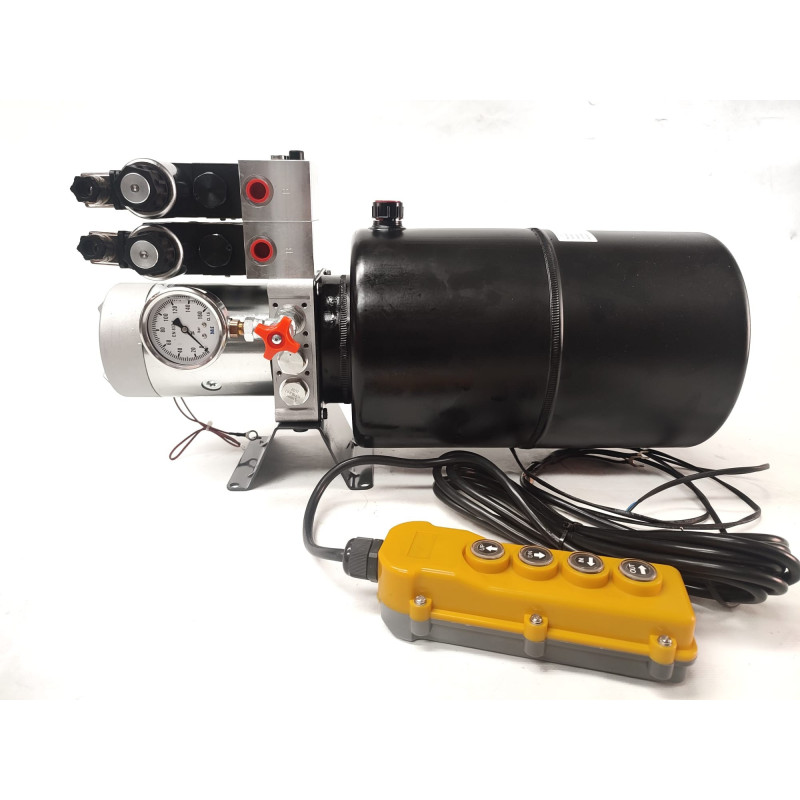

Mini hydraulic power unit model PH-2276355:

- Electric motor 24 VDC, 2200 W

- Motor voltage: 24 VDC

- Hydraulic pump 5 cc / rev.

- Max. Pressure: 90 bar.

- Assembly screws set.

- Height block 28 mm.

- Hydraulic control valve 4 ways, 3 position, center 4, 24 VDC.

- Parallel NG6 block, 3/8 "side outlets

- Double check valve on A and B.

- Pressure gauge: 0-160 bar.

- Gauge valve On/Off.

- Tank: 12 L cylindrical.

- Mounting: Horizontal.

- Include 45 mm mounting foot
