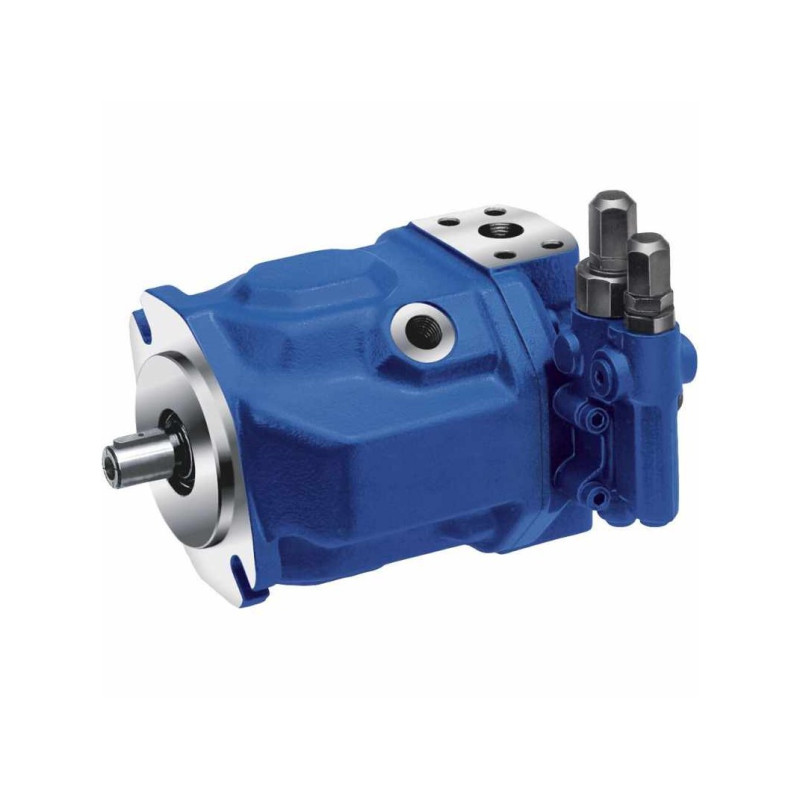

Bosch Rexroth Hydraulic Pump – Model A A10VSO100 DFR1/31R-VPA12N00
Variable displacement axial piston pump by Bosch Rexroth, 100 cc/rev, pressure and flow controller (DFR1), SAE A 2-bolt mounting, 40 mm keyed shaft
Displacement: 100 cc
Control and adjustment device: DR F X-T regulator, closed control 32/53
Direction of rotation: Clockwise (viewed from the shaft end)
Weight: 50 kg
Maximum flow rate: 150 L/min
Operating pressure: 280 bar
Differential pressure: 14 bar

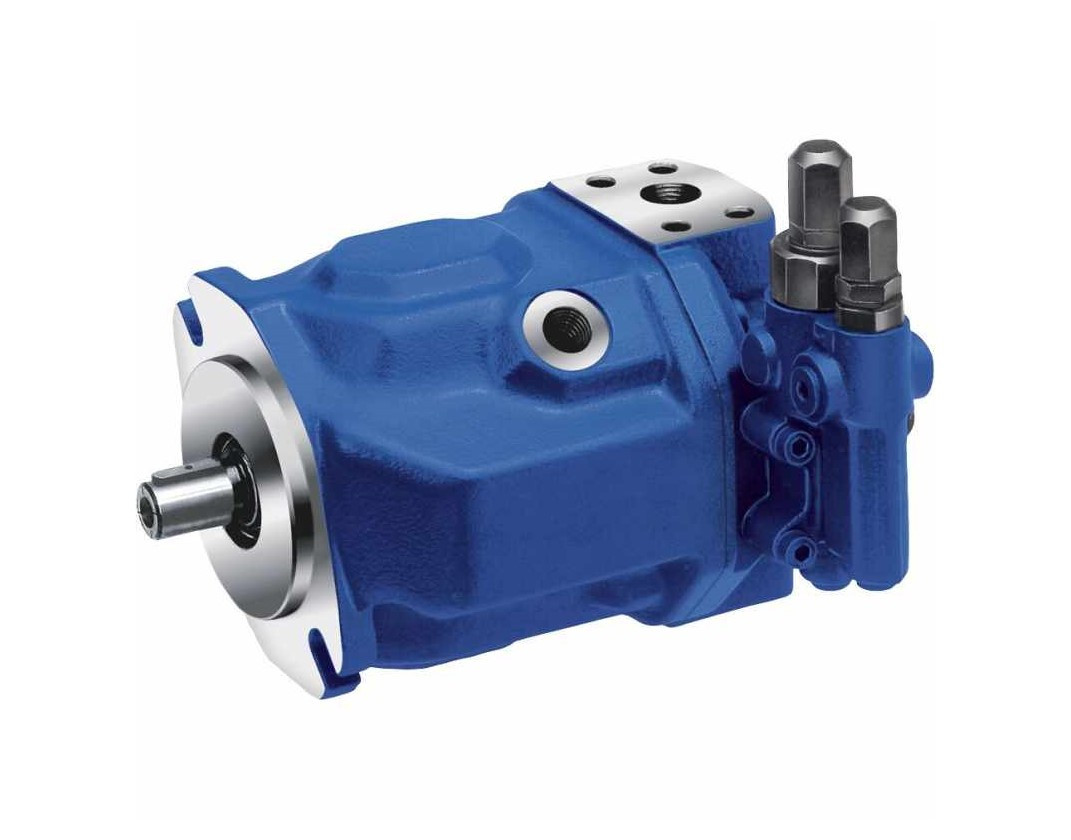

Bosch Rexroth Hydraulic Pump – Model A A10VSO100 DFR1/31R-VPA12N00
The A10VSO is a variable displacement axial piston pump with swashplate design for hydrostatic drives in open circuit. The flow rate is proportional to the drive speed and the displacement. By adjusting the swashplate angle, the flow rate can be varied continuously.
Displacement: 100 cc
Control and adjustment device: DR F X-T controller, closed control 32/53
Direction of rotation: Clockwise (viewed from the shaft end)
Weight: 50 kg
Maximum flow rate: 150 L/min
Operating pressure: 280 bar
Differential pressure: 14 bar
Low operating noise
Long service life
Short control response times
Good suction characteristics
2 case drain ports
Seal material: FKM (standard)
Shaft end: ISO keyed shaft
Mounting flange: ISO 3019-2 (metric), 2-hole
Working ports: Metric side flange B, metric side flange S
Drive: Without through drive
