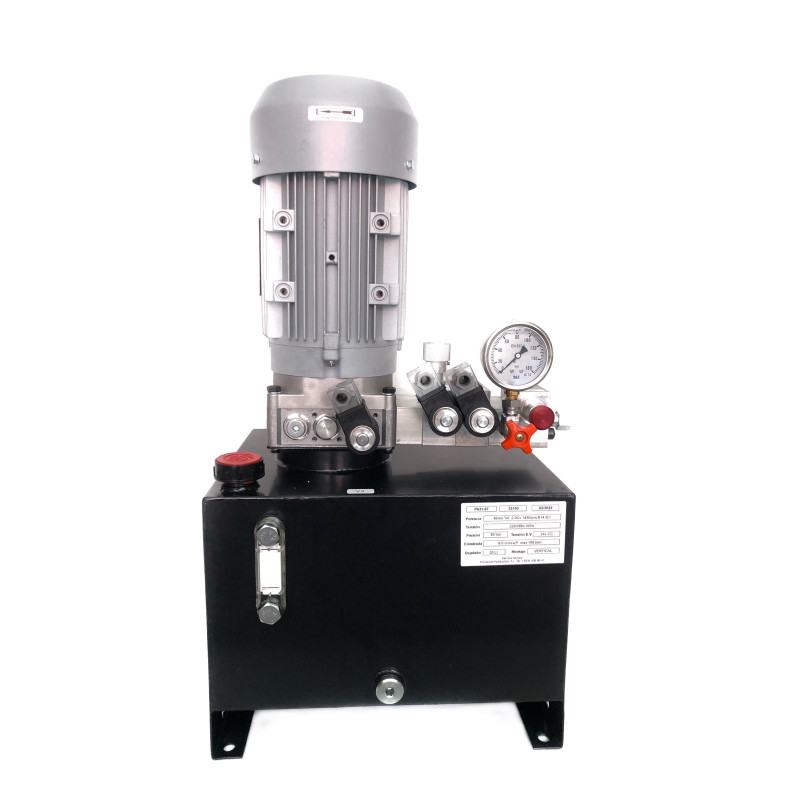

Single-phase hydraulic unit, 3 HP, 220V, 23.3 cc/rev, 1500 rpm, working pressure 250
Single-phase electric motor, 220 V – 50 Hz, 2.2 kW (3 HP), 1500 rpm, aluminum housing, high starting torque, with circuit breaker.
- Hydraulic pump coupled to the motor via bell housing and coupling.
- Flow rate: 35 L/min
- Working pressure: 250 bar
- Manual emergency stop button
- Safety valve. Pressure relief valve
- Lower flow regulator
- 16 L tank, approximate dimensions 410 × 335 × 250 mm (+55 mm), painted RAL 9005.
- Filler cap with 3xM5 air filter
- Visual level with thermometer M10/76mm
- Pressure gauge Ø63 mm, scale 0–100 bar, 1/4" connection, with glycerin.
- Angled pressure gauge wrench; 1/4" BSP male; 291-14
- Fittings + suction, discharge, and return piping
- Workshop assembly + static testing + pressure regulator calibration included
