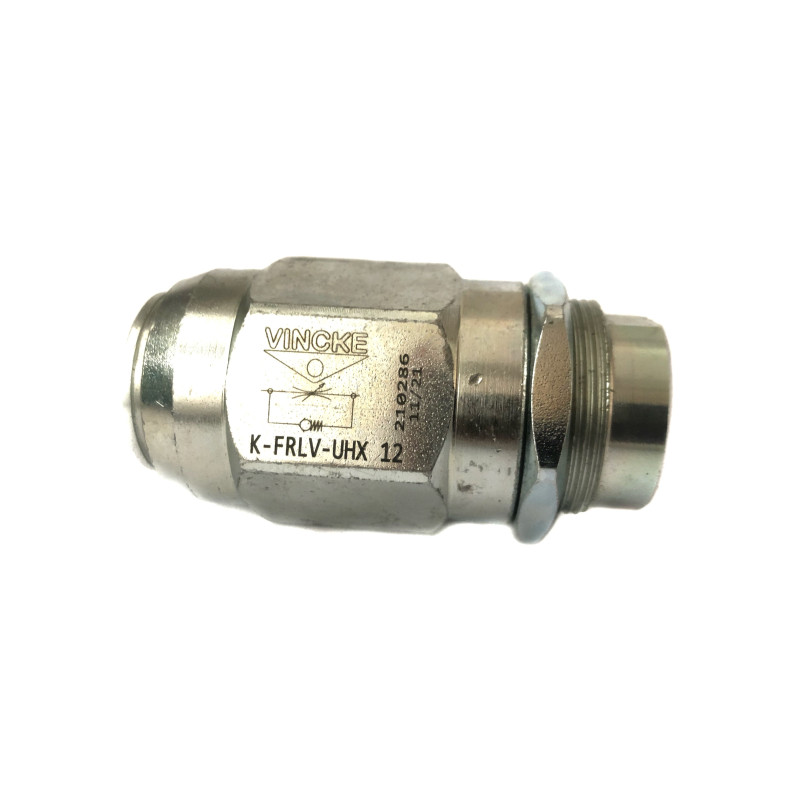

Unidirectional Barrel Flow Regulator 1/2" BSP, 45 L/min.

APPLICATION:

The use of unidirectional barrel flow regulator is to adjust the speed of an actuator in one direction and allow free return in the opposite direction.

MOUNTING AND OPERATION:

Connecting the actuator to A port, the valve adjusts the flow on B port.

The flow is free in the opposite direction.

The flow rate adjustment is obtained by turning the valve in the desired direction.

Once the desired setting has been established, screw the locking ring nut in position to maintain the set values even in the presence of vibrations.

Turn clockwise to increase the flow and vice versa.

UPON REQUEST:

3 and 6 bar springs – Metric threads – Special zinc plating.
