Venta de Válvula Antirretorno de 3/8"

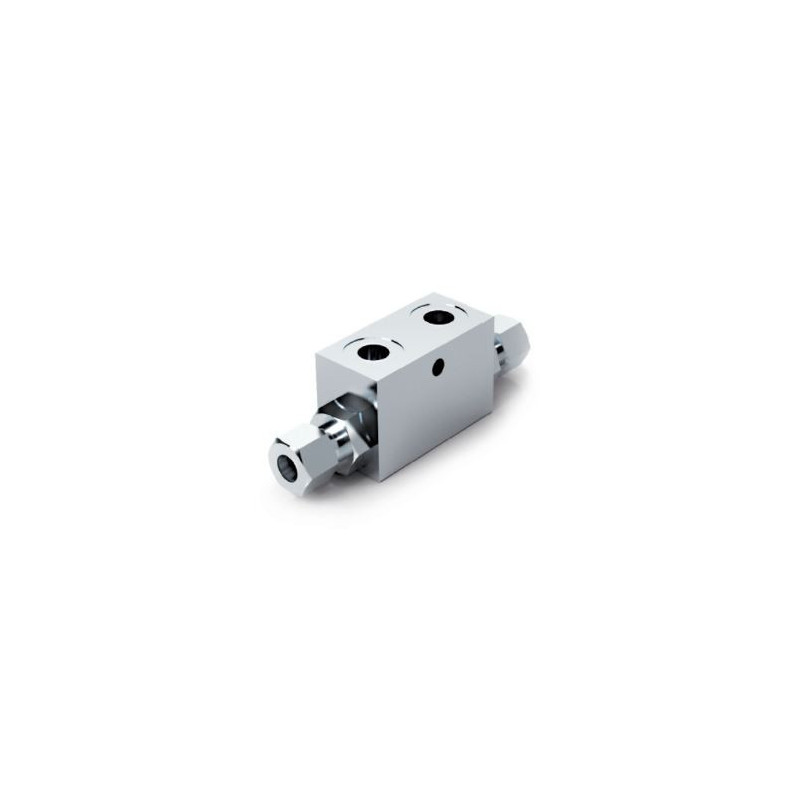

Double pilot check valve 3/8", 30 L/min

0/5

This valve is used to block a double acting hydraulic cylinder in both directrions.

 Features:

  • Body: Zinc
  • Internal components: hardened and ground steel.
  • Seals: BUNA N standard.
  • Leakage: Guided poppet - negligible leakage.
  • Connect VI and V2 to the supply and CI amd C2 to the actuador with the pipe.
  • Pilot ratio: 1:5, 5.
  • Max flow: 30 L/min.
  • Max. Pressure: 350 bar.
  • Cracking pressure: 4 bar.
Categoría Hydraulic Valves EAN13 5021325210030 Referencia V0110
