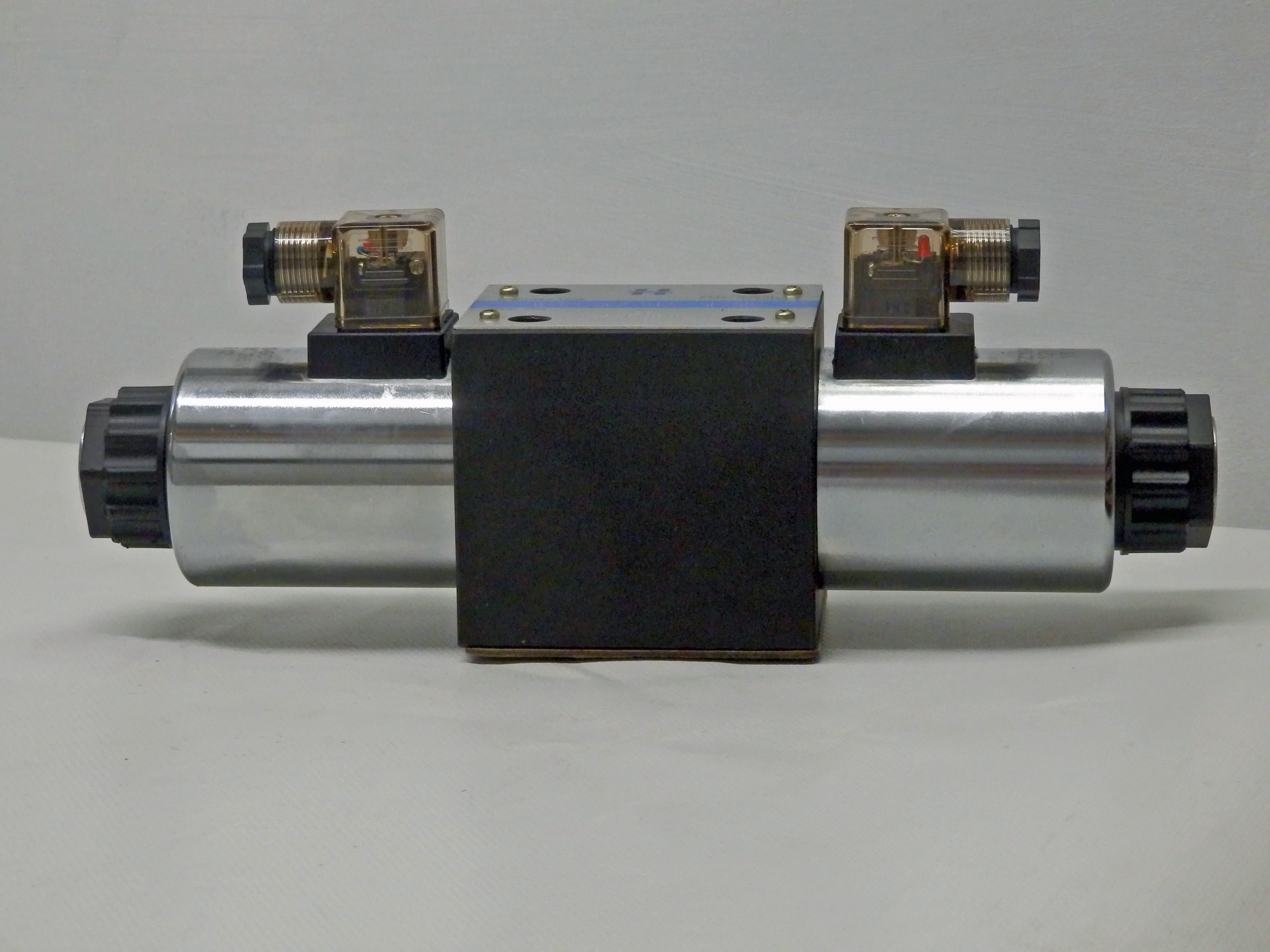

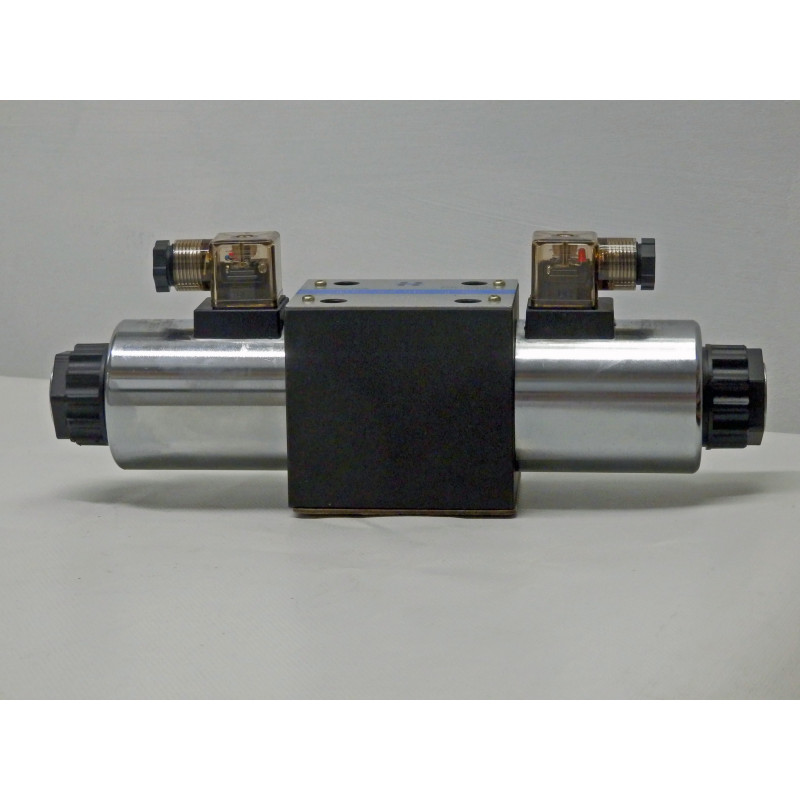

Directional control valve, 80 L/min, 4 ways, 3 position, open center, double solenoid.
Previous
Next
Directional control valve, 80 L/min, 4 ways, 3 position, open center, double solenoid.

Directional control valve, 80 L/min, 4 ways, 3 position, open center, double solenoid.

0/5

Directional control valve CETOP 3, 80 L/min, Open center, double solenoide 110 VAC, 4 ways, 3 position.

€135.31
Tax included
Añadir Al Carrito

Directional control valve model: FW-02-3C3-A110-Z5L-50

  • Cetop Electrical Operated Directional Control Valve: FW
  • NS 6 (Cetop 3): 02
  • Function code: 3C3 (Open center)
  • Working voltage: A110 - AC110 Volt
  • Code - Z5L - Hirshman connector with light
  • Reference  - 50

Directional control valve, 4 ways, 3 position, open center, spring centered, double solenoide 110 VAC, with Hirshman connector with light

 This valve can be supplied with 110, 220 VAC or 12, 24 VDC.

  • Max flow:80 L/min
  • Weight: 2 Kg.

Return and refund policy

Being a standard product, the user will have 15 calendar days from receipt to exercise his right to return the product as long as it is returned in its original packaging, without having been used, damaged or modified.

In case of return of the product, the user will cover the shipping and return costs. The refund only includes the total amount of the product including VAT.

Products that have been cut to length, custom made and/or imported exclusively for the customer, will not be returned and/or refunded unless it is a manufacturing failure. It does not matter if the delivery time suffers delays of any kind.

Category Hydraulic Valves Referencia FW-02-3C3-A110-Z5L-50
