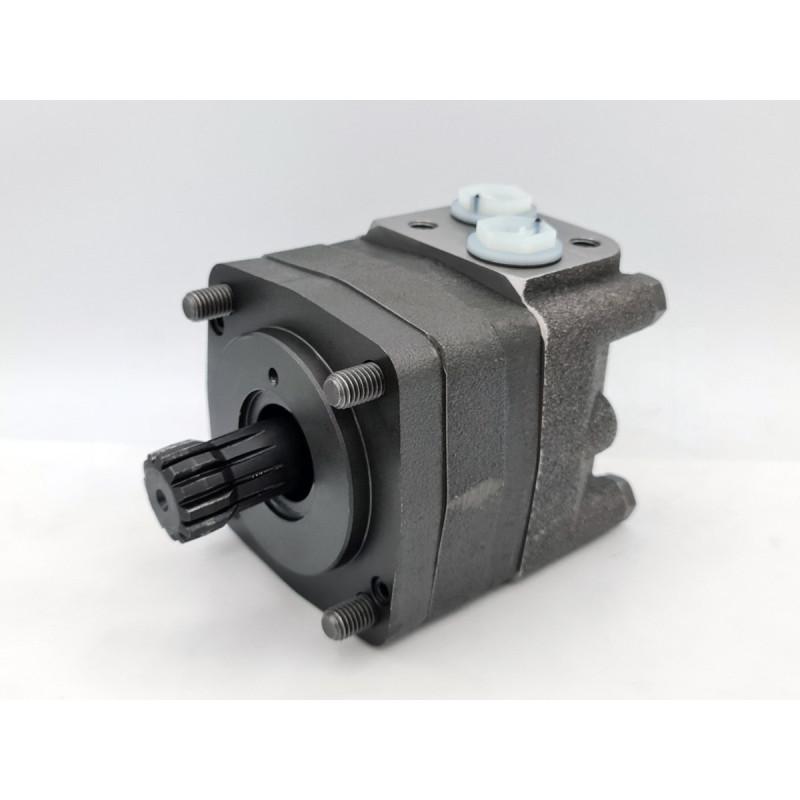

Hydraulic Motor OMSU 250 cm3 White brand

Hydraulic Motor OMSU 250 cm3 White brand

0/5

High-torque orbital hydraulic motor. White (formerly Sauer Danfoss)

  • Shaft: 12-tooth spline (12/24 DP).
  • Flange: -.
  • Displacement: 250 cc/rev.
  • Side ports: 1/2" BSP threaded.
  • Maximum speed: 300 rpm (intermittent: 360 rpm).
  • Maximum torque: 500 Nm.
  • Maximum output power: 12.5 kW.
  • Maximum pressure drop across the motor: 140 bar (intermittent: 175 bar).
  • Maximum oil flow: 75 l/min (intermittent: 90 l/min).
  • Intermittent operation is permitted for a maximum of 10% of each minute.
€1,338.17
Tax included
Añadir Al Carrito

High-torque orbital hydraulic motor. White (formerly Sauer Danfoss)

  • Shaft: 12-tooth spline (12/24 DP).
  • Flange: -.
  • Displacement: 250 cc/rev.
  • Side ports: 1/2" BSP threaded.
  • Maximum speed: 300 rpm (intermittent: 360 rpm).
  • Maximum torque: 500 Nm.
  • Maximum output power: 12.5 kW.
  • Maximum pressure drop across the motor: 140 bar (intermittent: 175 bar).
  • Maximum oil flow: 75 l/min (intermittent: 90 l/min).
  • Intermittent operation is permitted for a maximum of 10% of each minute.
Categoría Hydraulic Motors En stock 2 Items Referencia OMSU250
