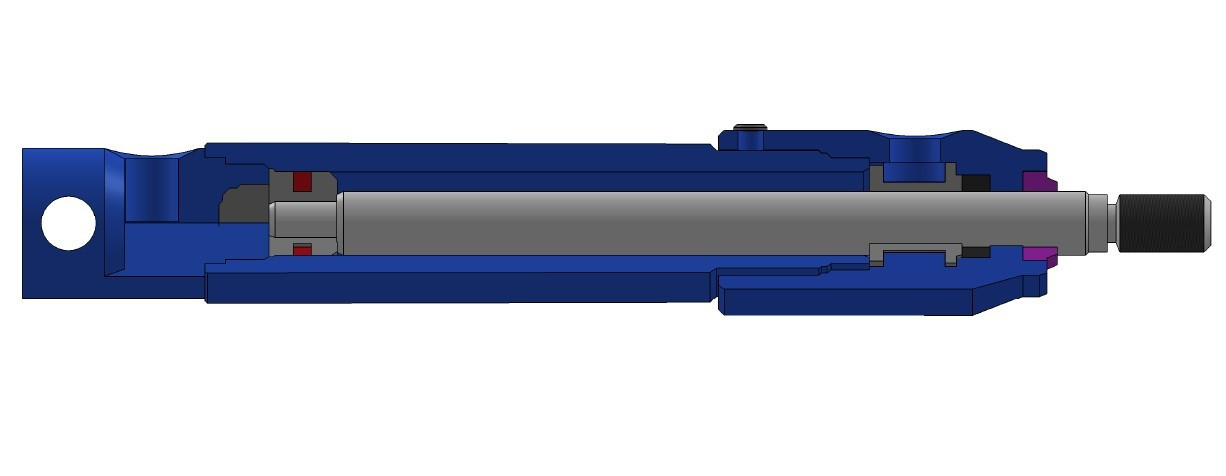

Double Acting Micro Cylinder Series 4
Double Acting Micro Cylinder, diameters from 20 mm to 25 mm.
Series 4
SERIE 4
| Z | Vol. | ||||||||||||||||
| REF. | ØA | ØB | Stroke | E | C | D | F | G | H | I | J | K | L | M | N | (cm3) | Weight |
| 4-12-25 | 12 | 20 | 25 | 118 | 9 | 10 | 35 | 28 | 47 | 60 | 15 | 23,5 | 18 | M10 | 11 | 12 | 0,58 |
| 4-12-50 | 50 | 143 | 9 | 10 | 35 | 28 | 72 | 60 | 15 | 23,5 | 18 | M10 | 11 | 20 | 0,66 | ||
| 4-12-80 | 80 | 173 | 9 | 10 | 35 | 28 | 102 | 60 | 15 | 23,5 | 18 | M10 | 11 | 29 | 0,76 | ||
| 4-16-5 | 16 | 25 | 50 | 146 | 11 | 12 | 40 | 35 | 72 | 65 | 18 | 25 | 22 | M12 | 9 | 31 | 0,94 |
| 4-16-10 | 100 | 196 | 11 | 12 | 40 | 35 | 122 | 65 | 18 | 25 | 22 | M12 | 9 | 56 | 1,22 | ||
| 4-16-15 | 150 | 246 | 11 | 12 | 40 | 35 | 172 | 65 | 18 | 25 | 22 | M12 | 9 | 80 | 1,5 | ||
| 4-16-20 | 200 | 296 | 11 | 12 | 40 | 35 | 222 | 65 | 18 | 25 | 22 | M12 | 9 | 105 | 1,78 |
