Max. operating pressure port 1 (P) 350 bar (5000 psi)
Max. pressure admitted port 2 (T) 140 bar (2000 psi)
Max. flow 30 l/min (8 gpm)
Max. internal leakage1) 15 drops/min.
Fluid temperature range -30 to 100 °C (-22 to 212 °F)
Installation torque 45 - 50 Nm (33 - 37 ft-lbs) Weight2) 0.17 kg (0.38 lbs)
Special cavity 008 (see data sheet 18325-75)
Lines bodies and standard assemblies Please refer to section “Hydraulic integrated circuit” or consult factory Seal kit3)
Code: RG0008010000100 material no: R930001692
Fluids Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt)
Recommended degree of fluid contamination Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
Installation position No restrictions Other Technical Data See data sheet 18350-50
Descripción:

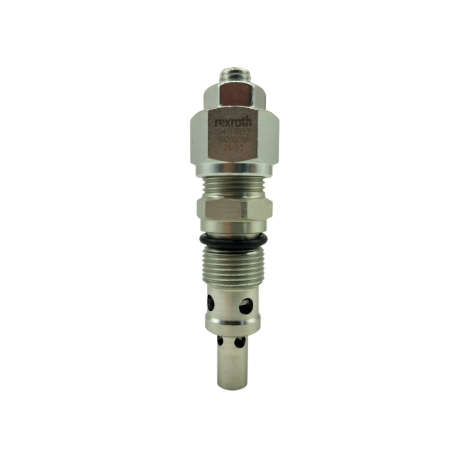

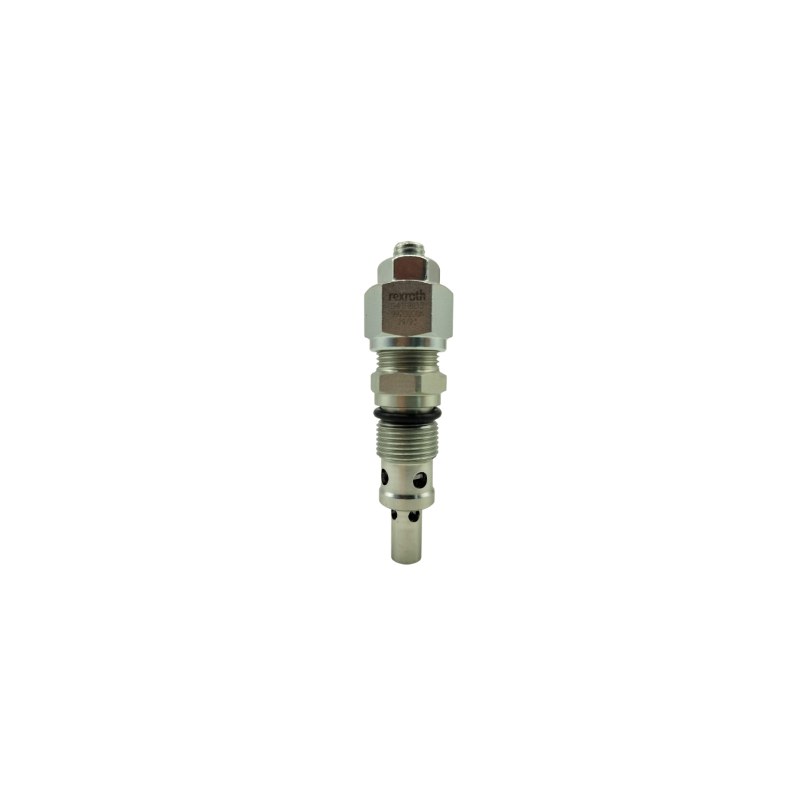

Flow is blocked from 1 to 2 until pressure increases to meet the selected valve setting, lifting the poppet from its seat and allowing relief flow through port 2 to tank. Pressure at port 2 is additive to the relief setting of the valve. The unique Bosch Rexroth Oil Control poppet design provides enhanced stability at all flows and pressures.
