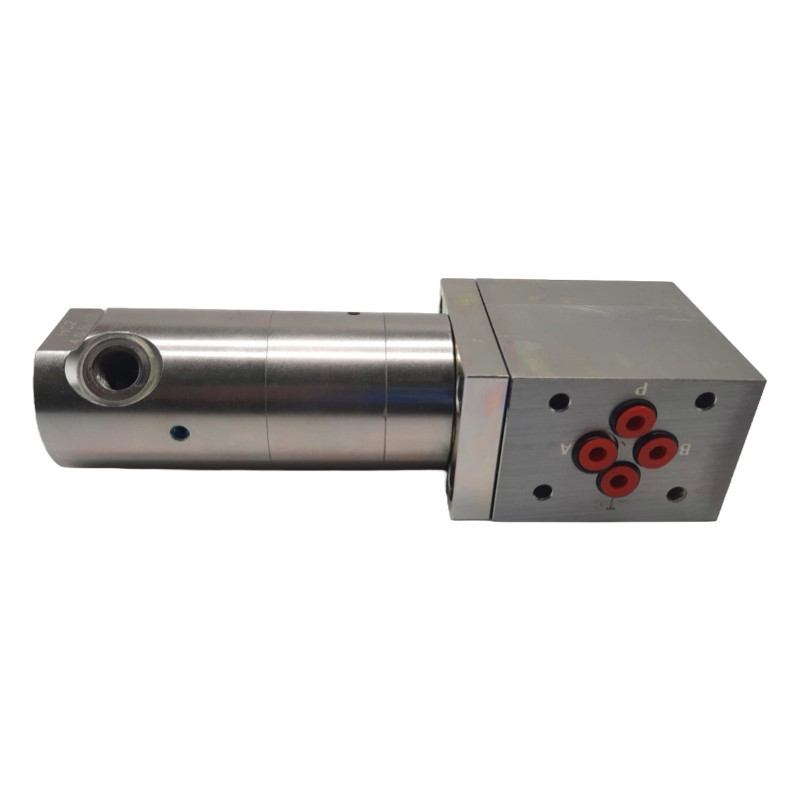

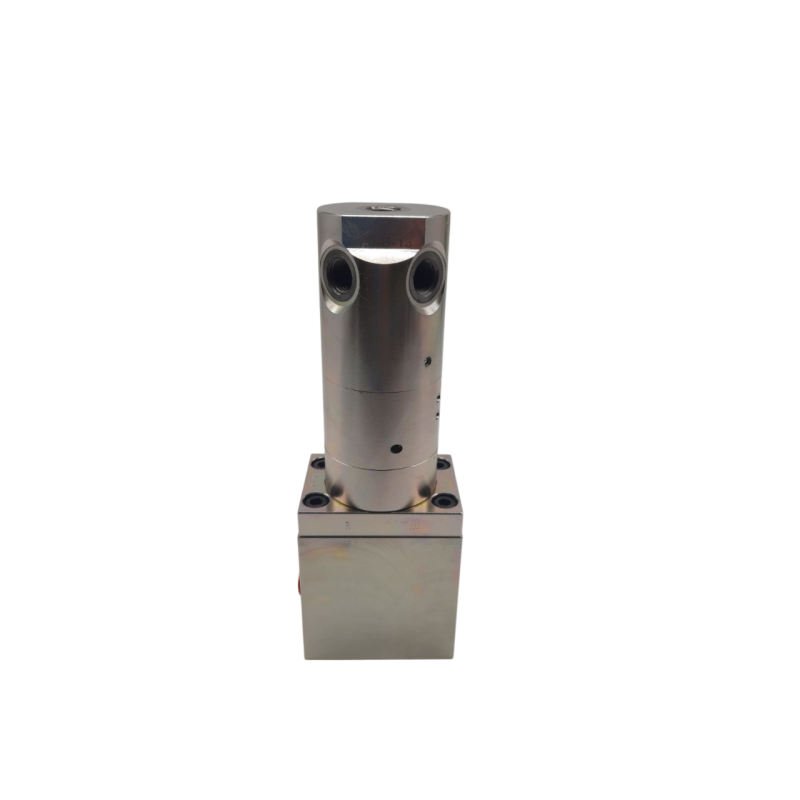

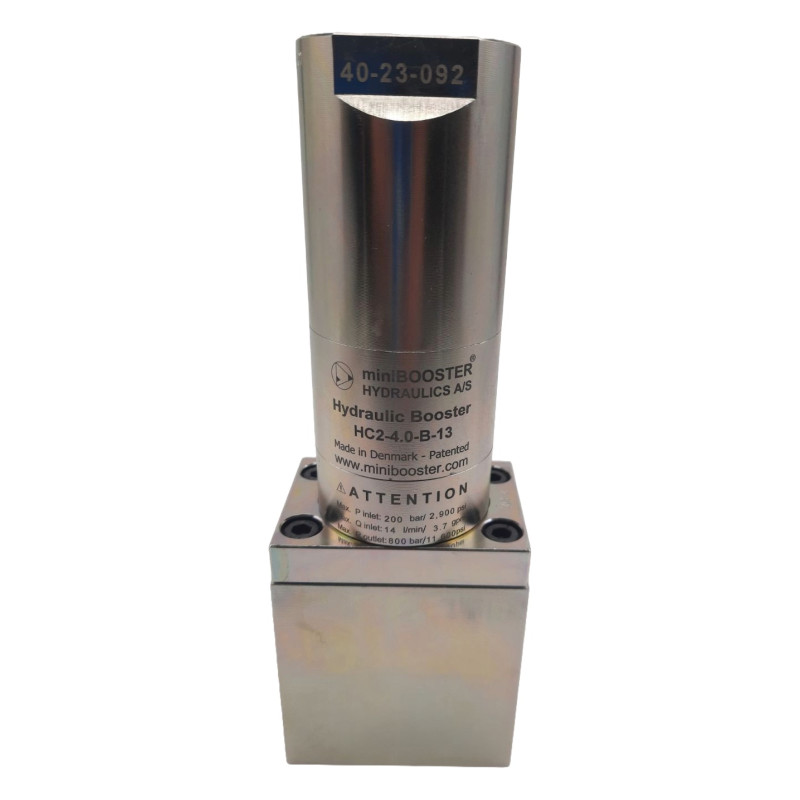

Minibooster HC2-4.0-B-13 hydraulic pressure intensifier
Minibooster HC2-4.0-B-13 hydraulic pressure intensifier
Minibooster HC2-4.0-B-13 hydraulic pressure intensifier
Anterior
Siguiente
Minibooster HC2-4.0-B-13 hydraulic pressure intensifier
Minibooster HC2-4.0-B-13 hydraulic pressure intensifier
Minibooster HC2-4.0-B-13 hydraulic pressure intensifier

Pressure Booster 1:4, Max Pressure: 800 bar with base plate NG6

0/5

Hydraulic pressure intensifier with adapter for mounting on an NG6 base plate.

Multiplication ratio: 1:5

Maximum inlet pressure: 200 bar

Maximum outlet pressure: 800 bar

HC2-4.0-B-13

€2,339.33
Tax included
Añadir Al Carrito

Hydraulic pressure intensifier with adapter for mounting on an NG6 base plate.

Multiplication ratio: 1:5

Maximum inlet pressure: 200 bar (this inlet pressure must never be exceeded)

Maximum outlet pressure: 800 bar

HC2-4.0-B-13

To use this pressure intensifier, it is not necessary for the hydraulic power unit to be a high-pressure one. This intensifier can be installed without any problem on a low-pressure mini power pack (0–350 bar) and operate with a maximum pressure of up to 800 bar.

The output of the pressure intensifier is used to obtain the maximum 800 bar.

Categoría Home Marca Minibooster En stock 1 Item Referencia HC2-4.0-B-13+HC2-NG6-1
