Motor-Pump 24 VDC, 2200W, 4L/min, 200 bar.

0/5

Motor-Pump Assembly (Hydraulic pump + Electric Motor)

  • Electric motor: 2000 W, 24 V DC (CC)
  • Flow: 4 L/min.
  • Pressure: 200 bar.
  • Consumption I = 100A / S2) 4 min / S3 = 14%
  • Max Cont. Working time at 200 bar = 4 min.
  • Cooling time: 24 min. aprox.

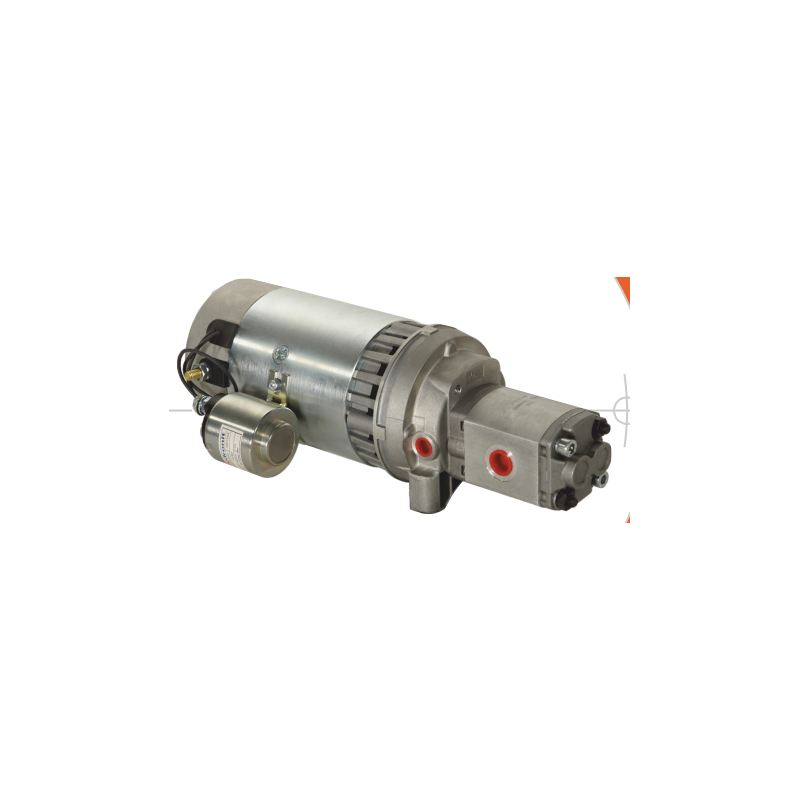

Motor-Pump Assembly 2200 W, 24 VDC (Hydraulic pump + Electric Motor)

  • Electric motor 2200 W @ 24 VDC Ø114 with termal protection.
  • Max. Pressure: 250 bar.
  • Rele 24 V DC 150 A for Ø80 y Ø114
  • Rele mounting kit Ø114.

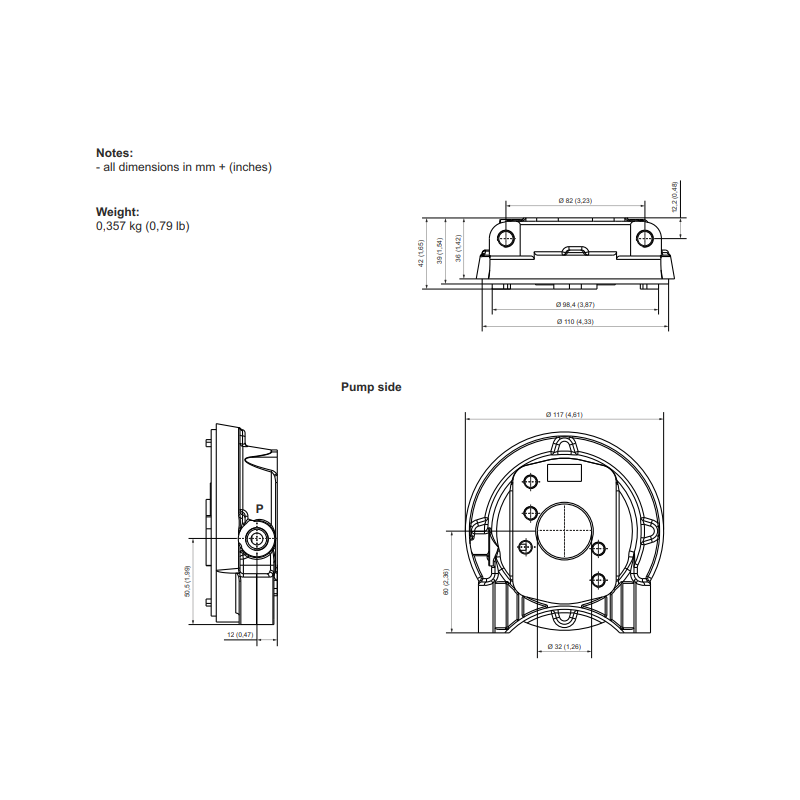

  • Bell housing for electric motor +pump Ø114-125 DC motor to Group 1 pump.
  • Coupling Ø114-125 for Group 1 pump.
  • Hydraulic pump group 1 of 1.2 cc/rev. Max. Pressure 250 bar.

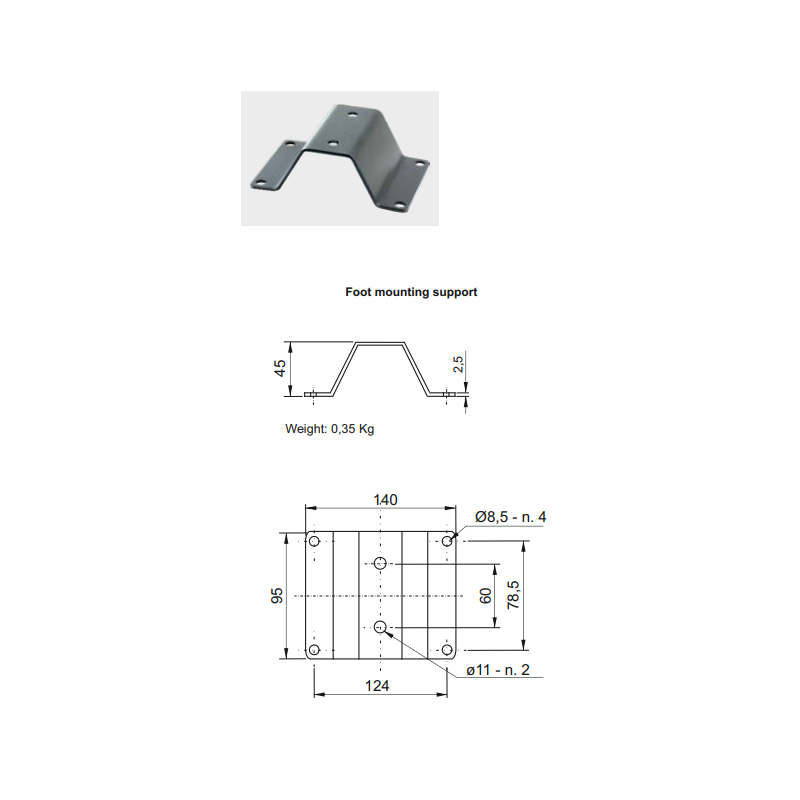

  • Mounting foot: 45 mm height.

This type of hydraulic pump may work a different flows depending on the pressure, for example:

1.- 6 L/min @ 100 bar.

2.- 4,4 L/min @ 150 bar.

3.- 4 L/min @ 200 bar.



Max working time at 200 bar: 4 minutes.

Cooling time after 4 minutes working at 200 bar: 27 minutes.
Category Home Referencia IPH114-2.2KW24DC/T-150-K1.27-P47
