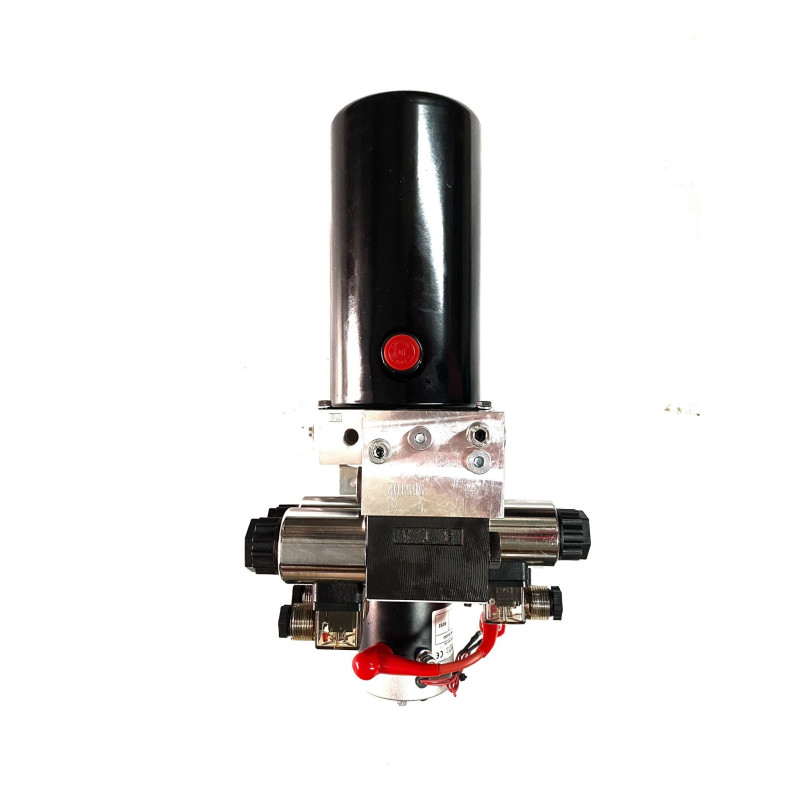

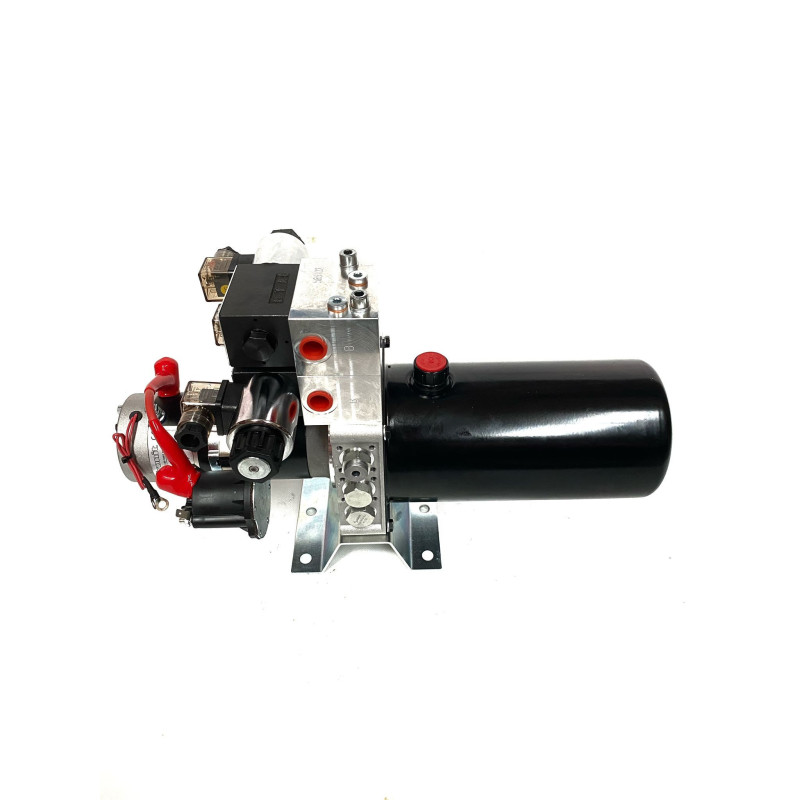

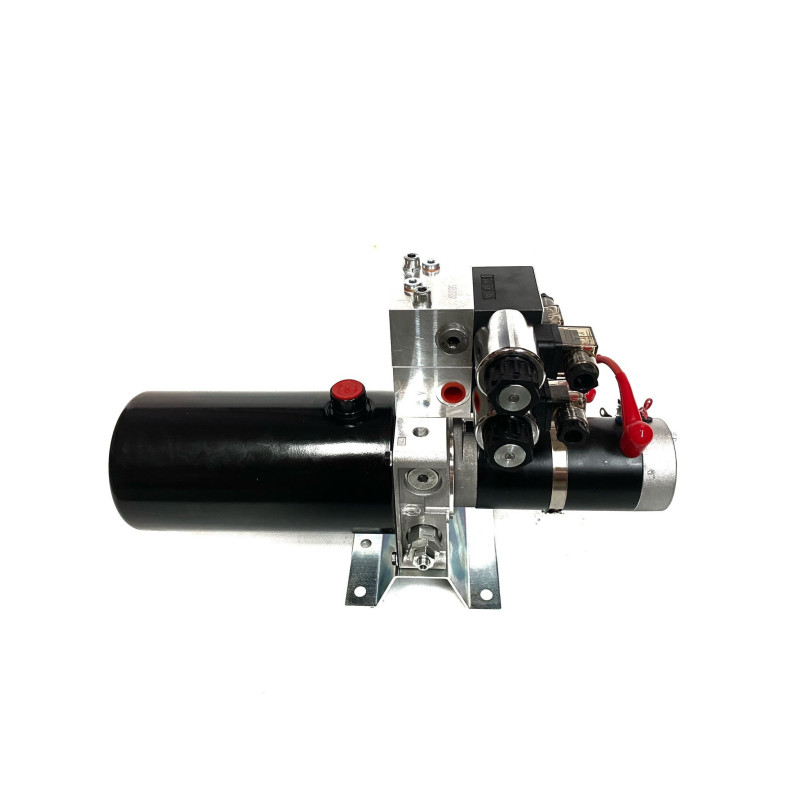

Hydraulic Power Pack Max. Pressure 44 bar 8.52 L/min 1 Cv 220 VAC

0/5

Max. pressure 44 bar

Deposit: 8 L

Electric Motor 1 Cv 220 VAC single phase

6 cc/rev (8.52 L/min @ 1430rpm)

Electric motor 1 Cv 220 VAC single-phase

Hydraulic Pump: 6 cc/rev (8.52 L/min @ 1430 rpm)

Maximum pressure: 44 bar.

4-way solenoid valve, 3 positions, open center, 24 VDC (the voltage can be changed to 220 VAC, 12 VDC, etc.)

Manometer 0-60 bar.

Gauge excluder.

Suction filter

Tank: 8L

Mounting: Horizontal (Can be changed to vertical)

Categoría Home Referencia PHY2311063
