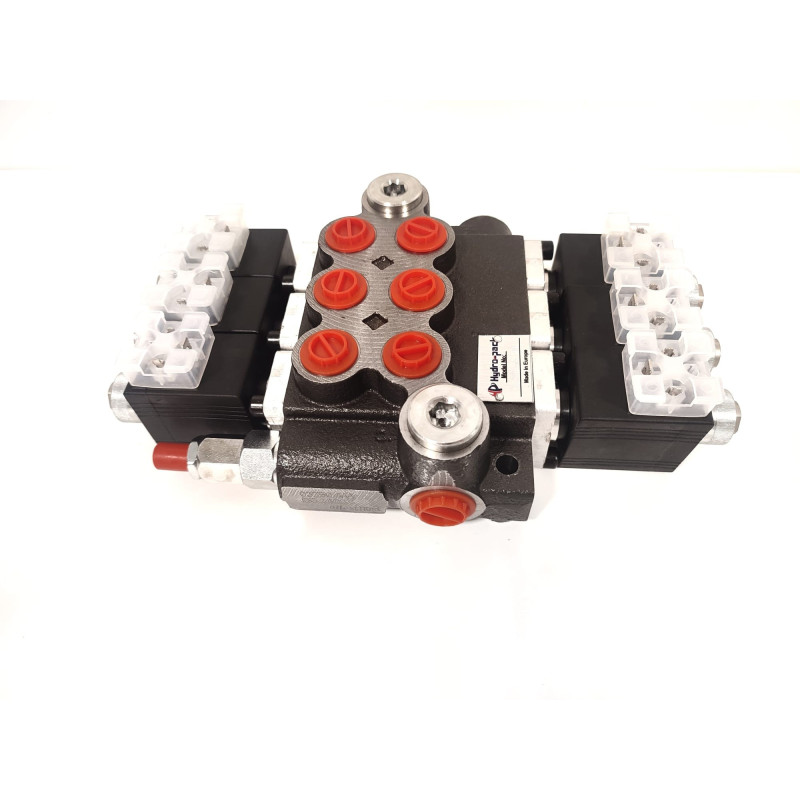

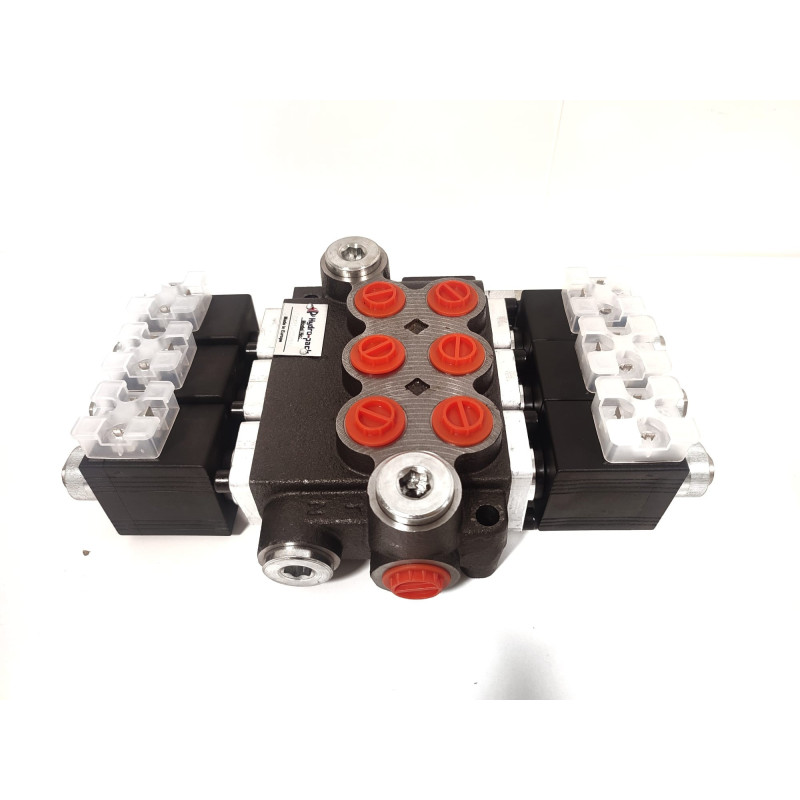

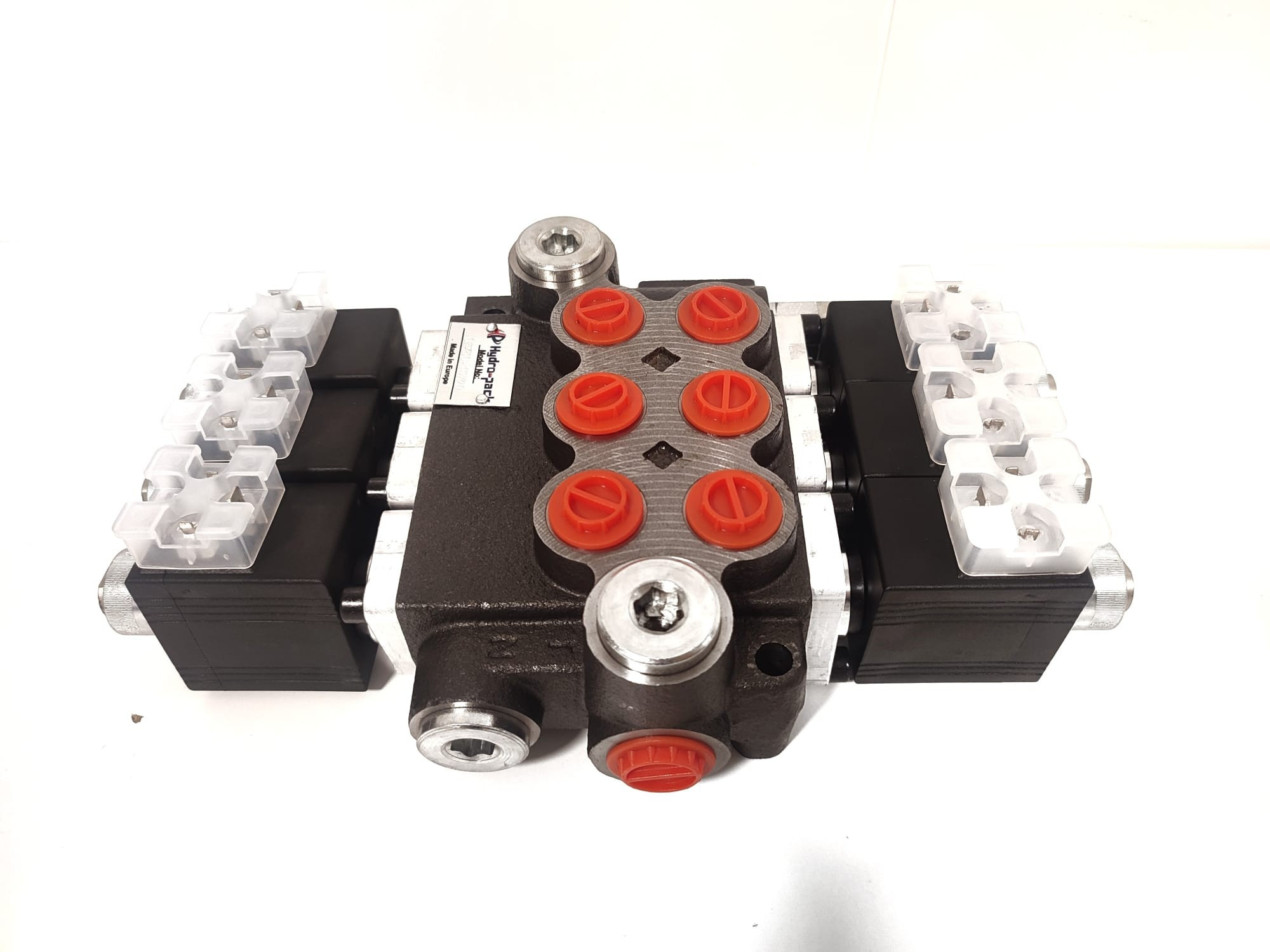

Directional Control Valve, 3 Section, Ports 3/8", 40 L/min, Electric 12 VDC.
- Directional control valve
- 3 section (to move double acting hydraulic cylinders)
- Ports A and B - 3/8" BSP, P and T - 1/2" BSP.
- Electrical activation 12 VDC
- All section function: Double acting hydraulic cylinders.
- Relief valve.
- Max Pressure: 300 bar.
€474.96
(tax excl.)
Reference:
HIP03Z50AAAES312VDCG
Add to wishlist
Directinal control valve, 3 section, Electrical Activation 12 VDC, Ports 3/8" BSP.
Directional control valve with 3 section, electrical activation and ports A and B 3/8" BSP, P and T 1/2" BSP
Max Working pressure on ports: 300 bar.
Only Electrical activation (No option for manual activation)
Max Flow: 50 L/min.
To move double acting hydraulic cylinders.
When it is in the center, the ports A and B are closed and the oil goes straight to the tank (P->T)
It can be used an adapter to use the N port as Power beyond or to close the center (A, B, P and T closed when in the center)
