- Electric motor: 30 Hp, 3 phases, 1450 rpm.
- Hydraulic pump: 43,44 cc/rev, (65,16 L/min @ 1500 rpm).
- Max pressure: 190 bar.
- Oil cooler.
- 300L tank.

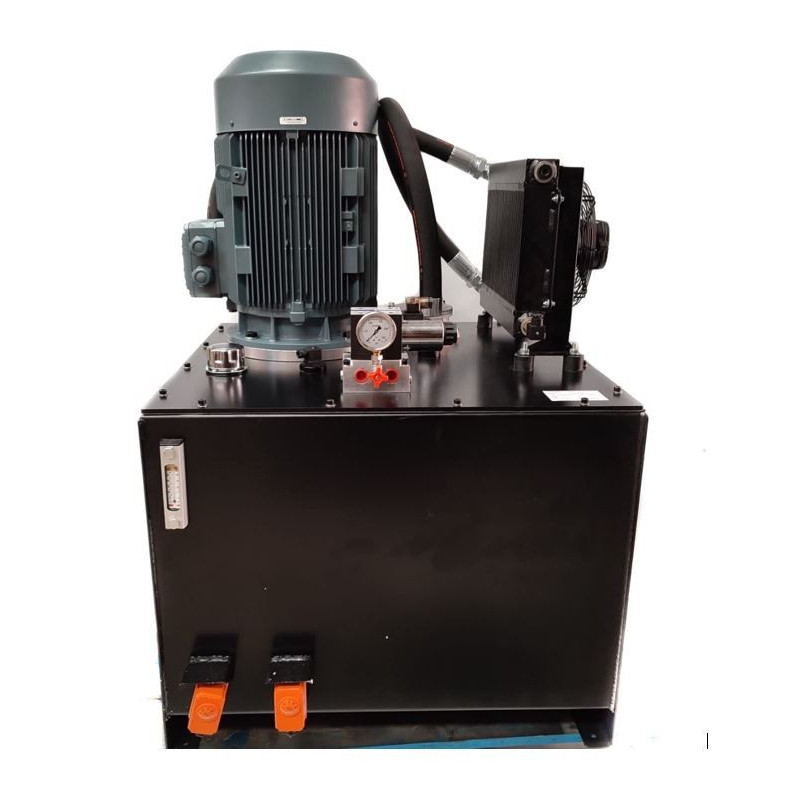

Hydraulic power unit with the following specifications:
- Electric motor: 30 Hp, 3 phases, 1450 rpm.
- Hydraulic pump: 43,44 cc/rev, (65,16 L/min @ 1500 rpm).
- Max pressure: 190 bar.
- Elastic motor-pump coupling .

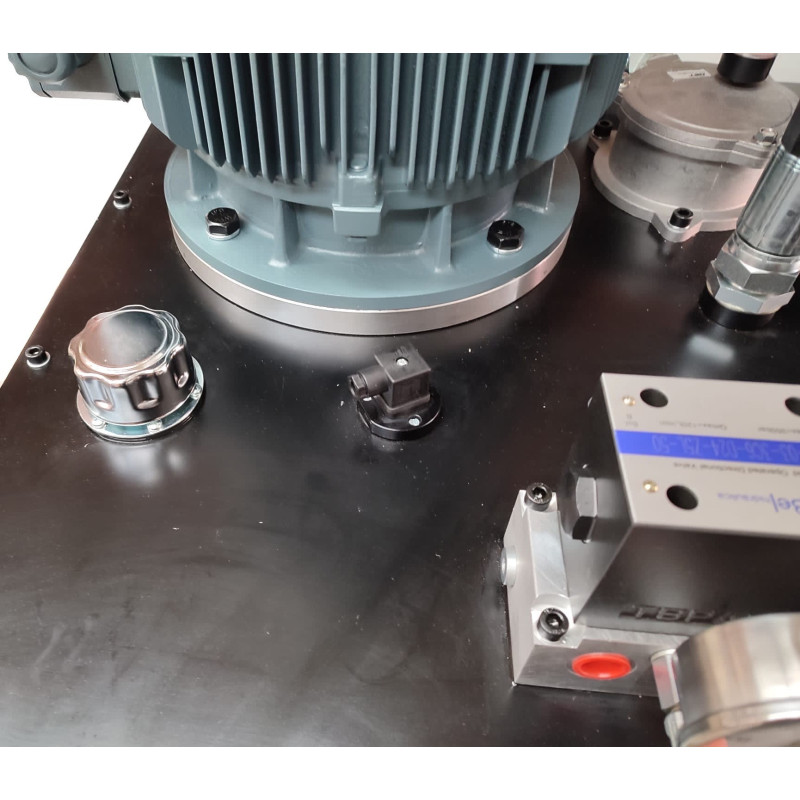

- Electric control valve 2 ways, 2 positions, tandem center.

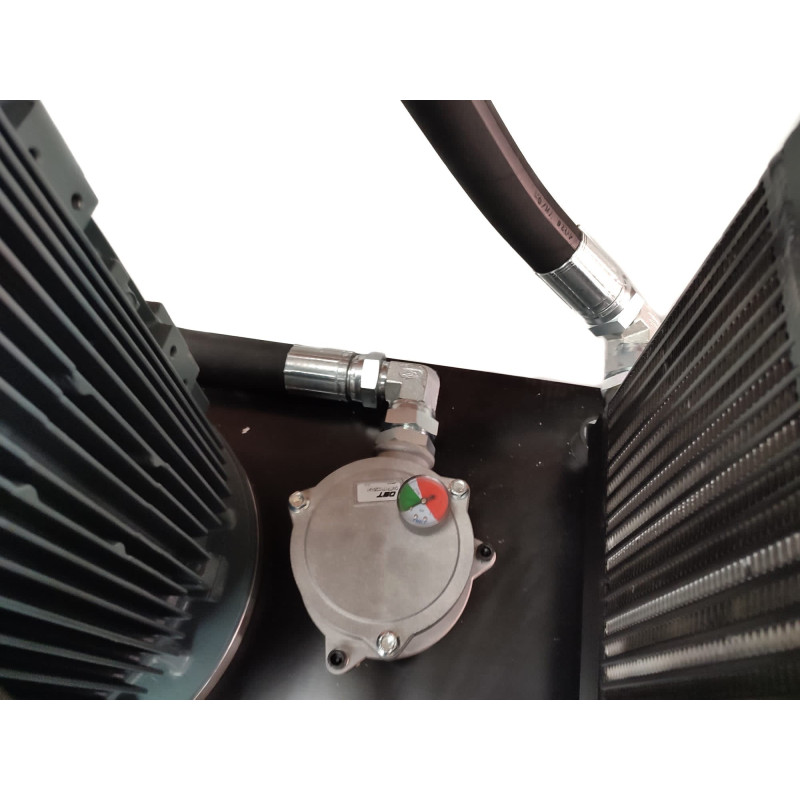

- Suction filter.
- Return filter.
- Oil polution gauge.

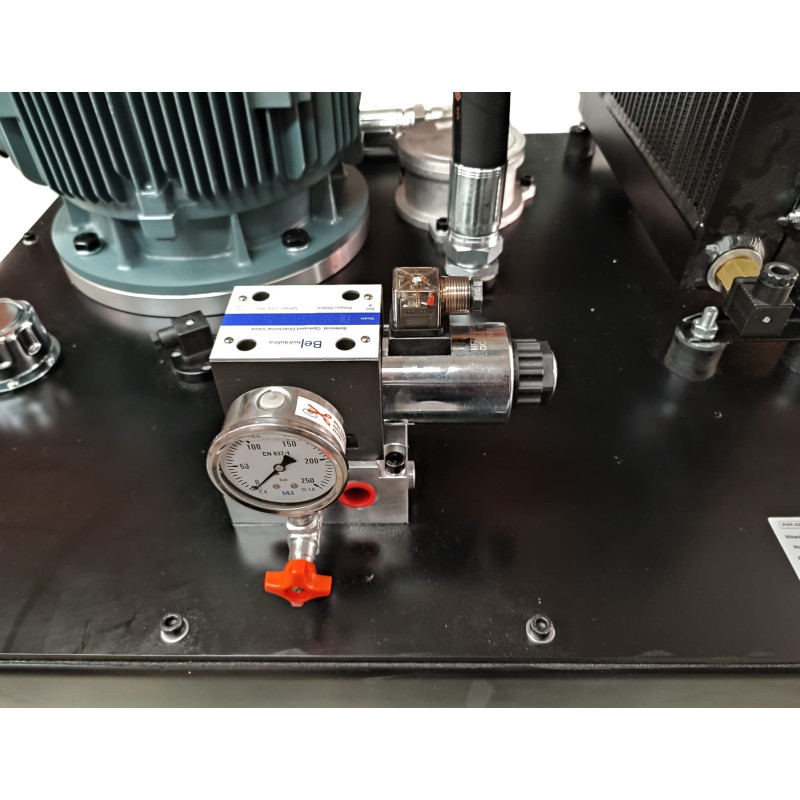

- Modular manifold with pressure relief valve.
- Pressure gauge 0-250 bar.
- Needle valve for pressure gauge.
- Adjustable thermostat 0-80 ºC. (2uds)
- Electric oil level.
- Heat exchanger with fixed thermostat. (oil cooler)
- Bypass check for oil cooler.
- Oil level with thermometer (2 uds).
- 300 L tank.
- Breather.
- Machined tank cap.
- Fittings.
- Testing, painture and mounting work.
