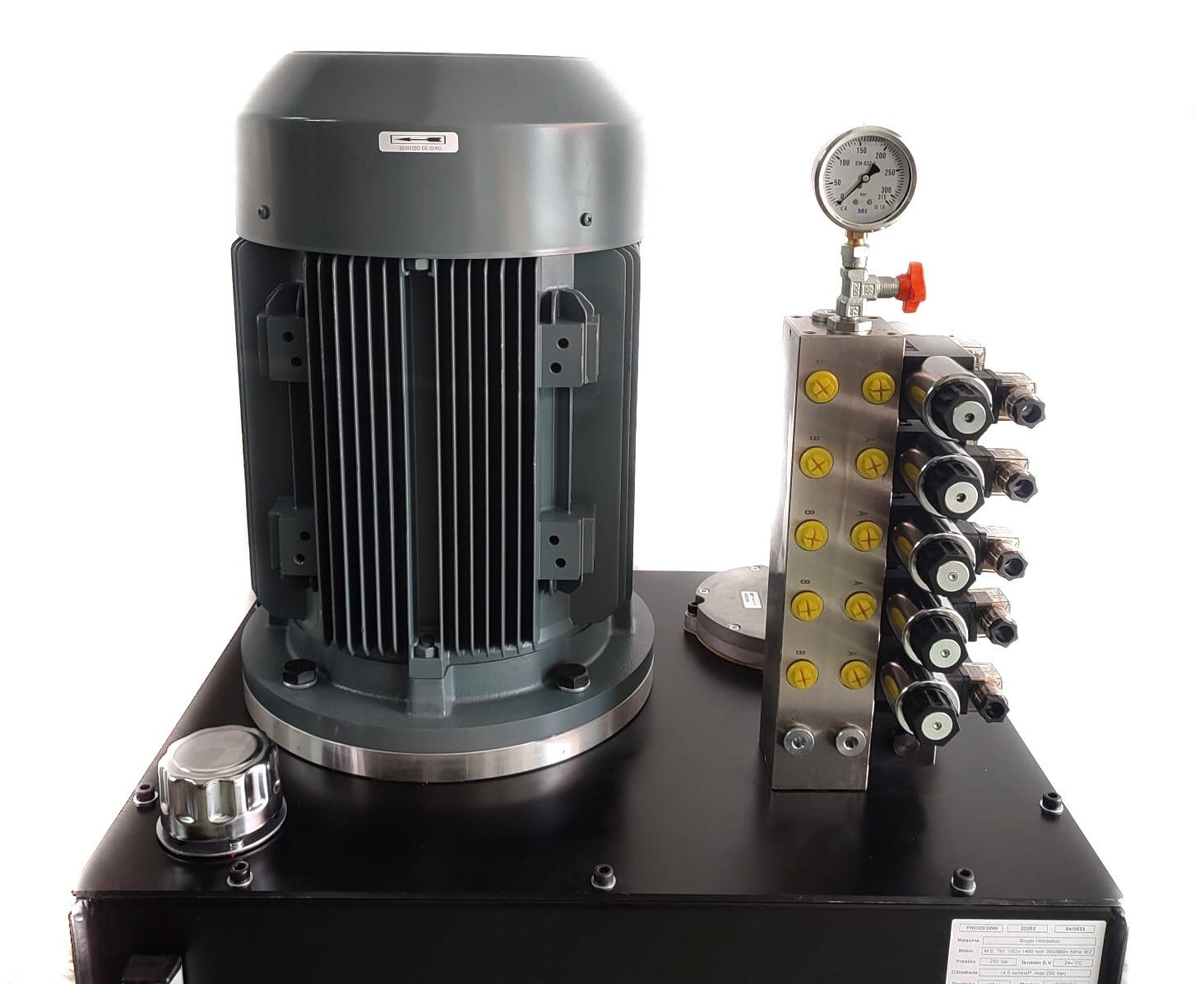

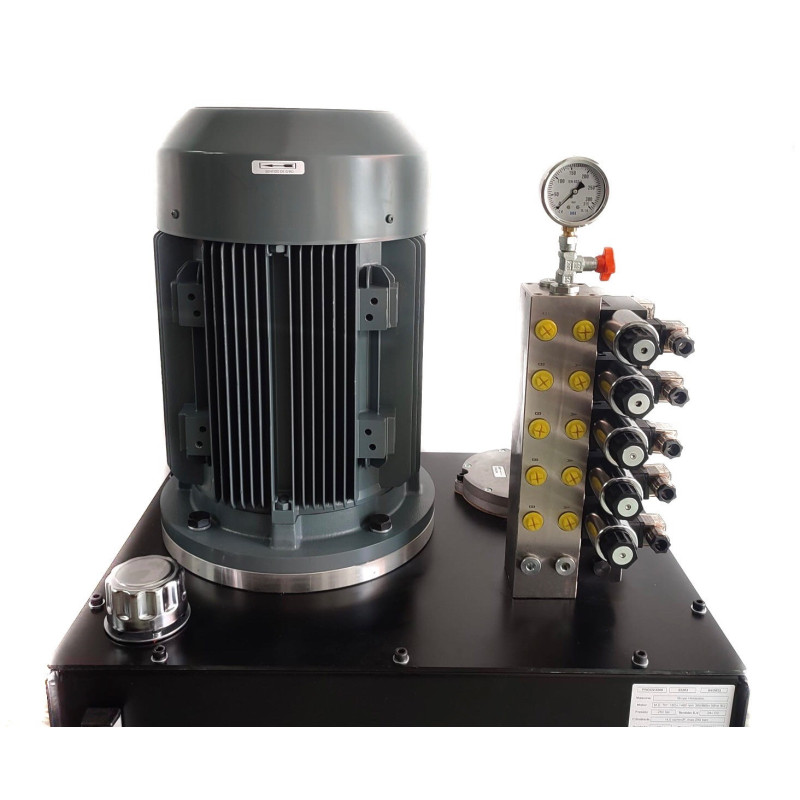

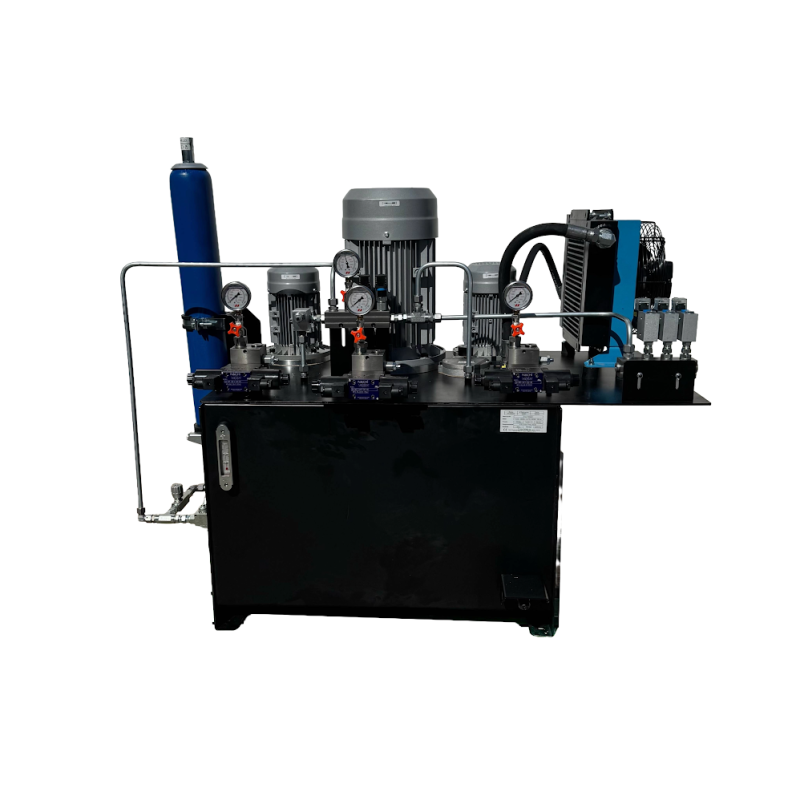

High-pressure hydraulic unit 12.5 Hp 1450 rpm. 250 bar

Hydraulic unit with the following characteristics:

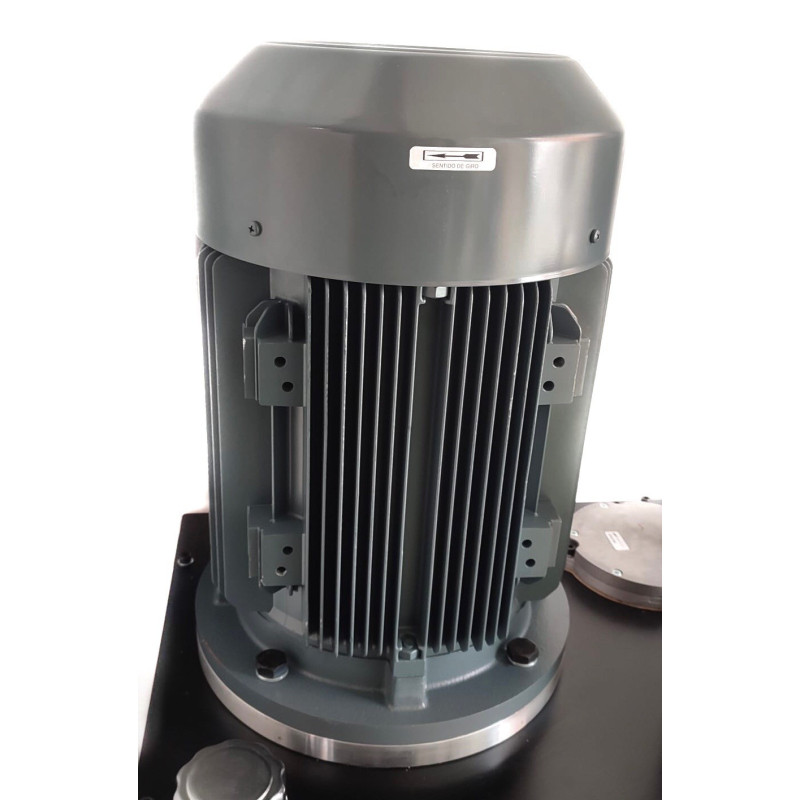

• 12.5 HP, 1450 rpm electric motor.
• Flexible motor-pump coupling.
• Coupling bell.
• Triple hydraulic pump, 3.64 cc/rev per section.
• Working pressure: 250 bar.
• Suction flange.
• Pressure flange.
• Suction filter.

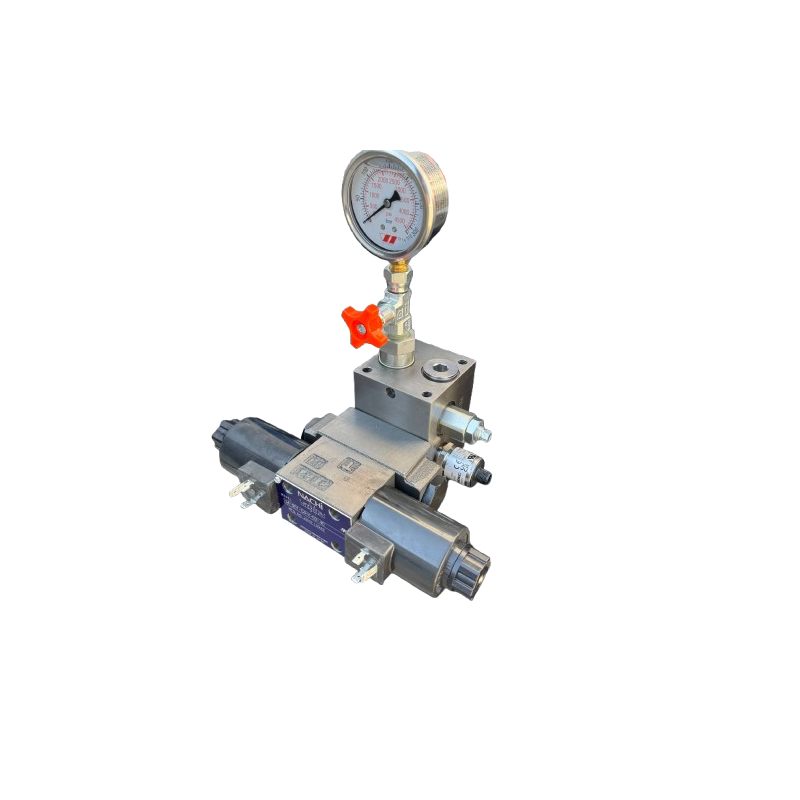

• NG6 base plate with safety valve.
• Pressure gauge excluder.
• Pressure gauge 0-315 bar, Ø63 mm, glycerin-filled.

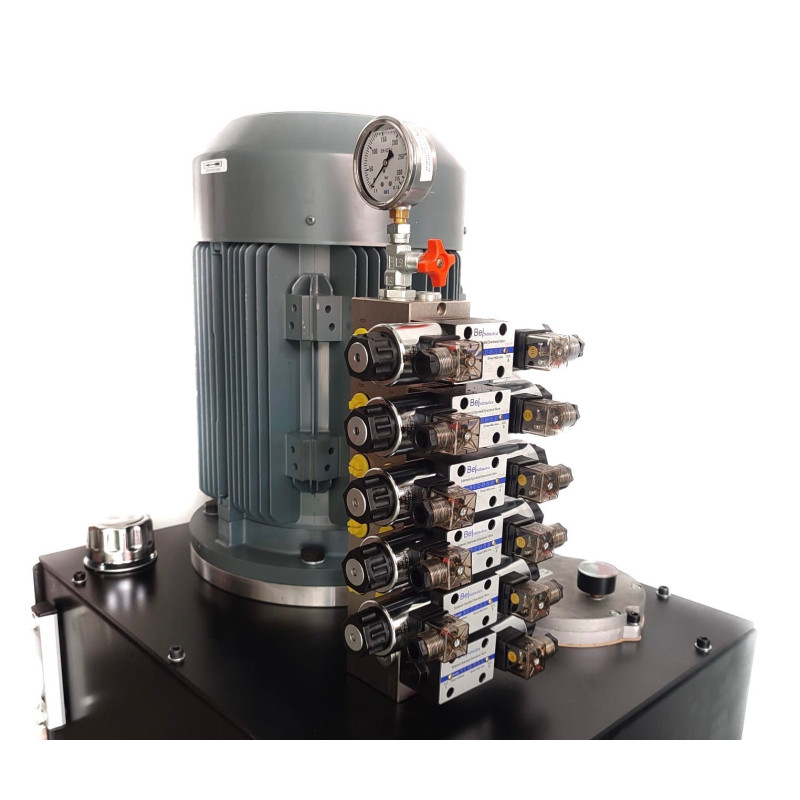

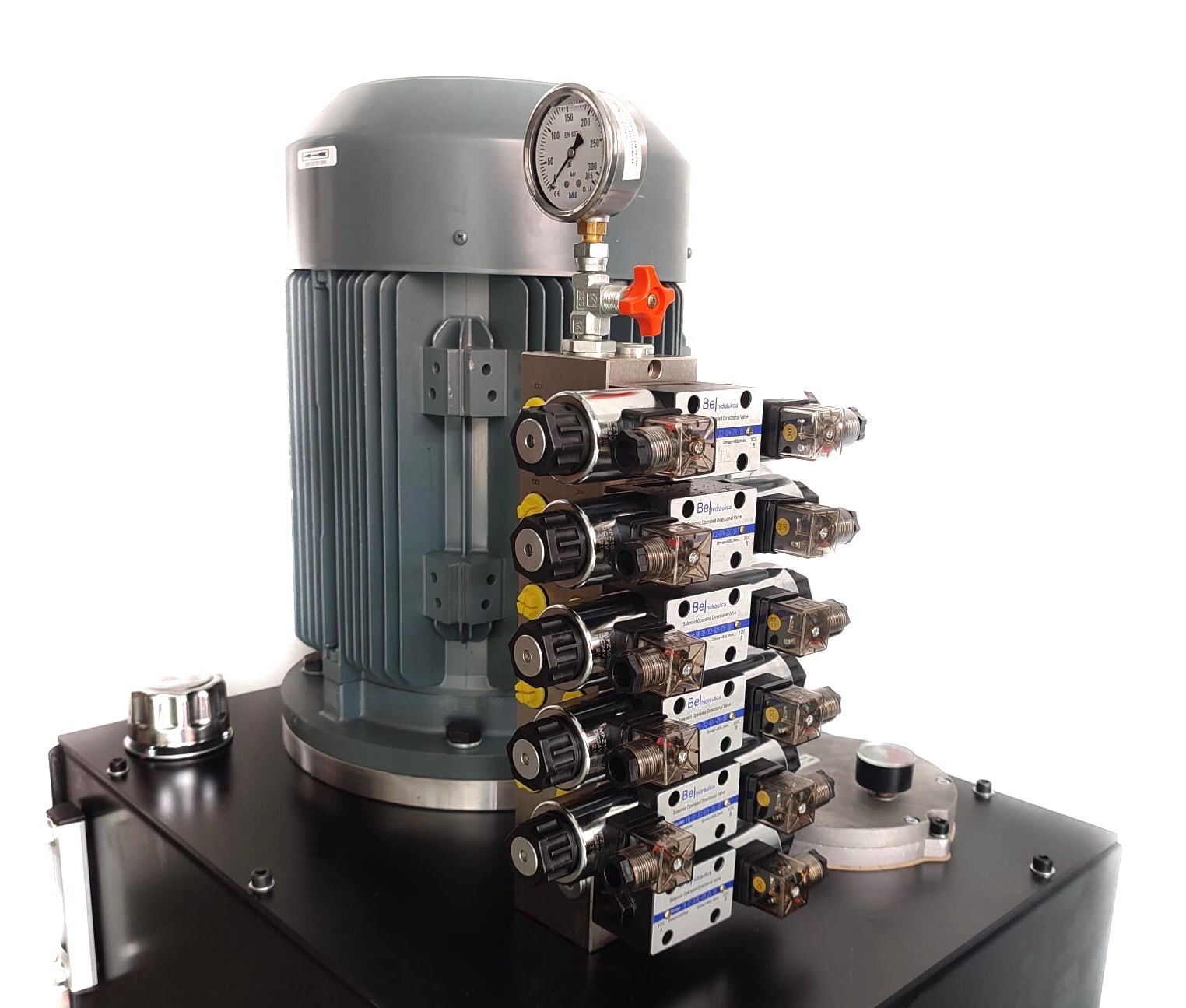

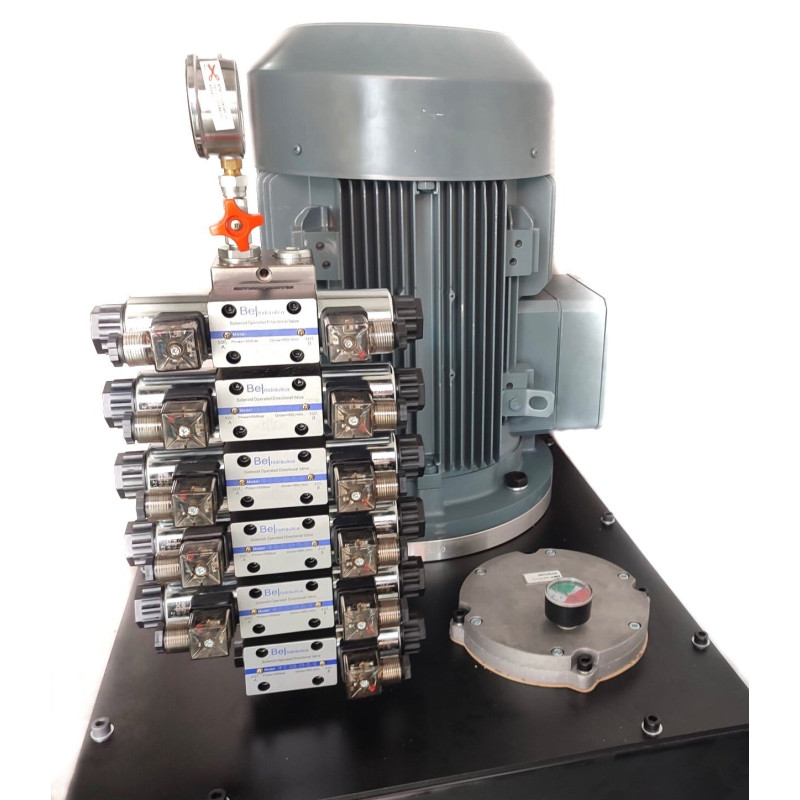

• 3 NACHI brand NG6 open center solenoid valves, 24 VDC.
• NACHI brand double pilot-operated check valve.
• Return filter.
• Return filter clogging indicator.
• 100 L tank.

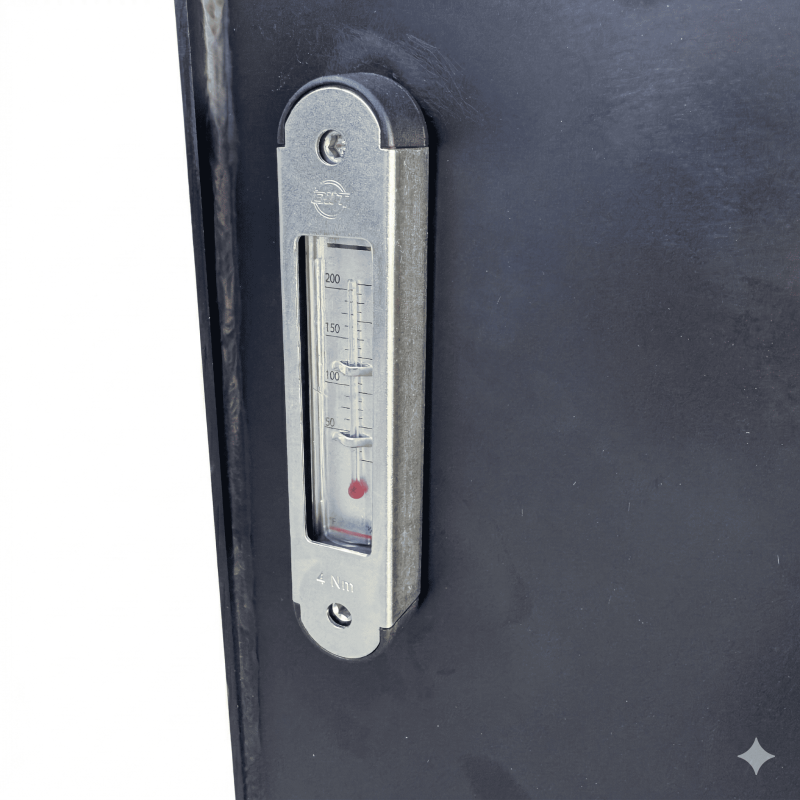

• Visual level indicator with thermometer.
• Fill cap.
• Machined tank lid.
• Fittings and piping. Pressure transmission up to 400 bar, Hydac brand, model 909388--HDA8446-A-0400-000
• Temperature transmitter -25 to +125°C, Hydac model 922752-HTT846-A-016-000

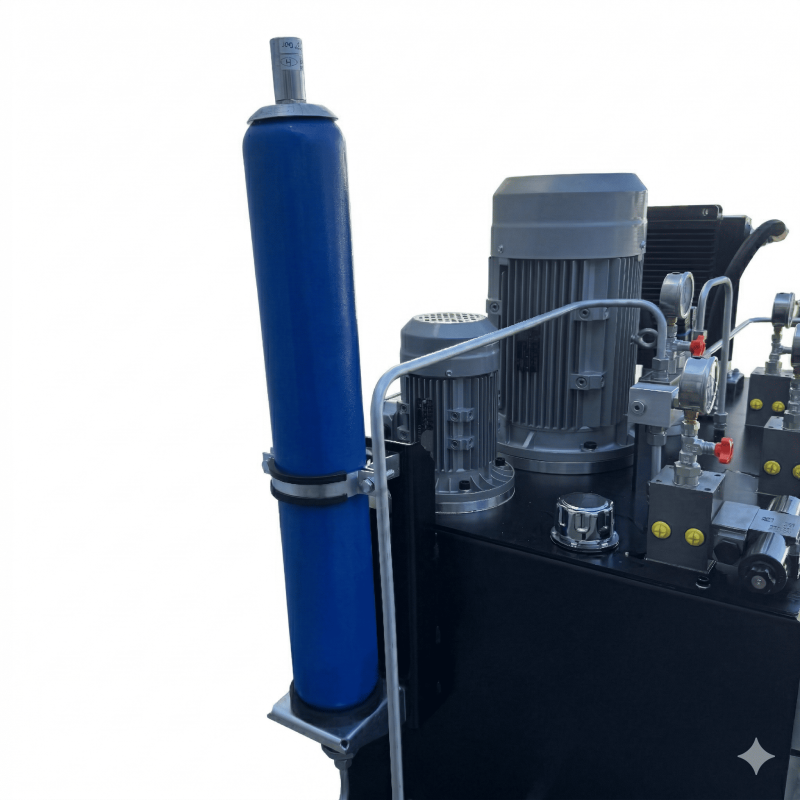

• Quick-closing system with accumulator
• Electric motor 0.75 Hp 1390 rpm
• Hydraulic pump
• Coupling bell.
• Flexible coupling.
• Suction filter.
• Manifold.
• Maximum pressure switch.
• Minimum pressure switch.
• Pressure gauge shutoff valve.
• Pressure gauge 0-315 bar Ø63 mm with glycerin.
• Pressure relief valve.
• Hydraulic accumulator drain valve.
• Hydraulic accumulator flow regulator.
• Hydraulic accumulator 5 L, 350 bar.

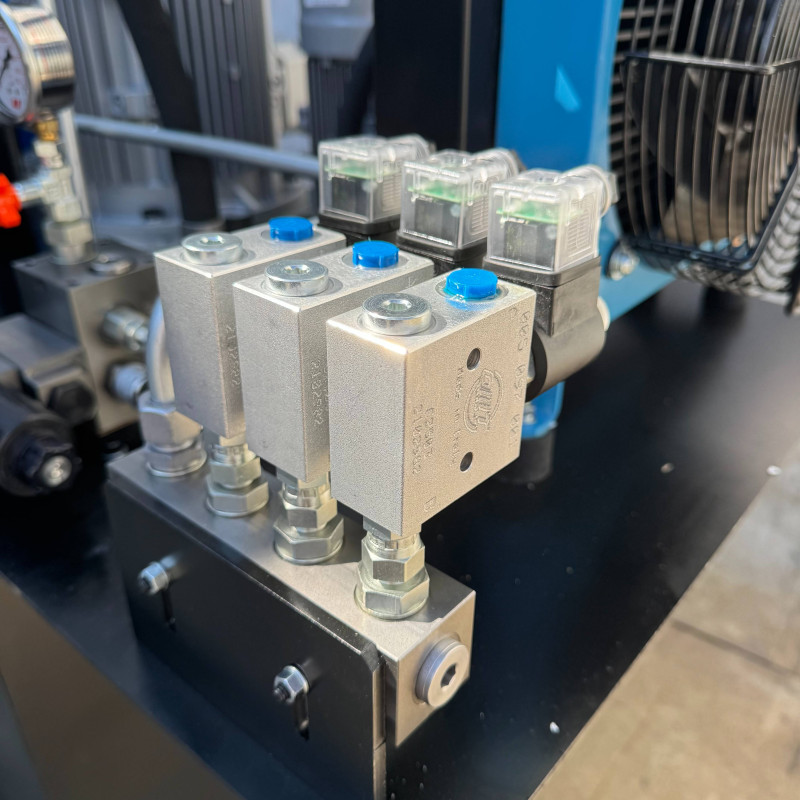

• 2/2 normally closed solenoid valve 24 VDC.
• Accumulator support.
• Cooling system.
• 0.75 Hp electric motor 1390 rpm.
• Hydraulic pump 22.8 cc/rev.
• Suction flange.
• Pressure flange.
• Coupling bell.
• Flexible coupling.
• Suction filter.
• Bypass check valve.

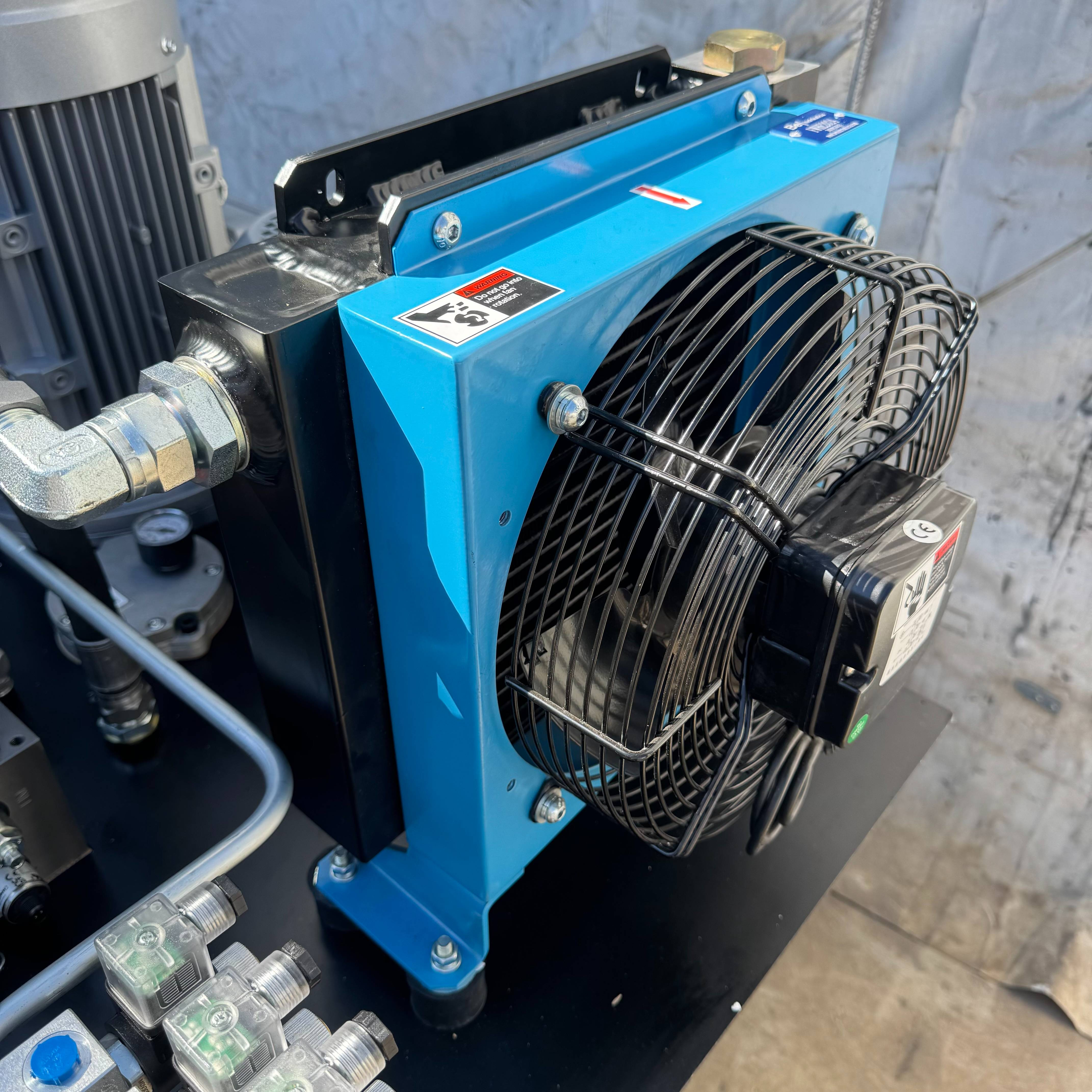

• Single-phase oil cooler 220 VAC. Design and documentation
• Hydraulic schematic.
• 3D drawing of the hydraulic unit.
• CE certificate of incorporation.
• User and maintenance manual.
• Labor.
• Leak testing and painting.
