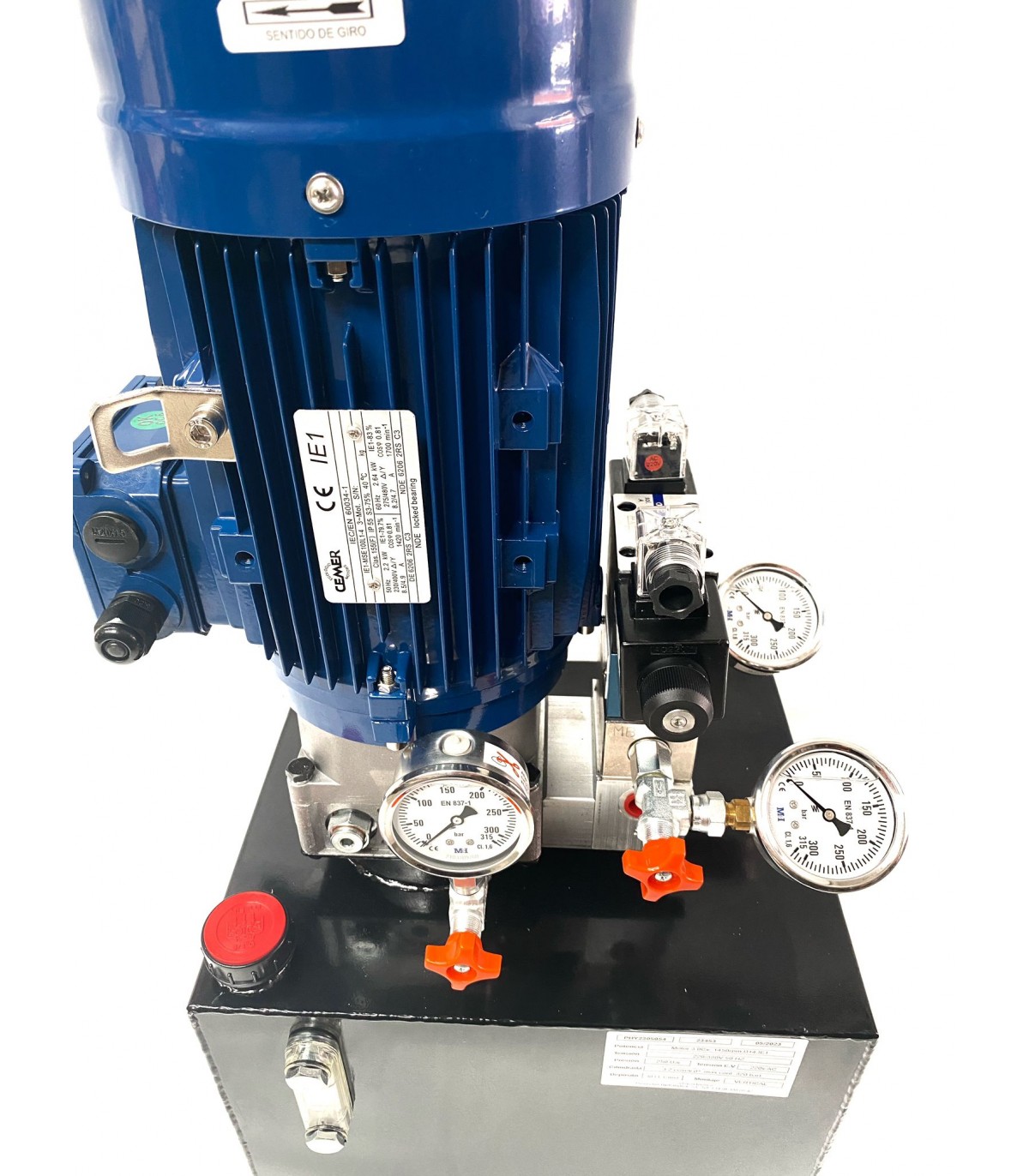

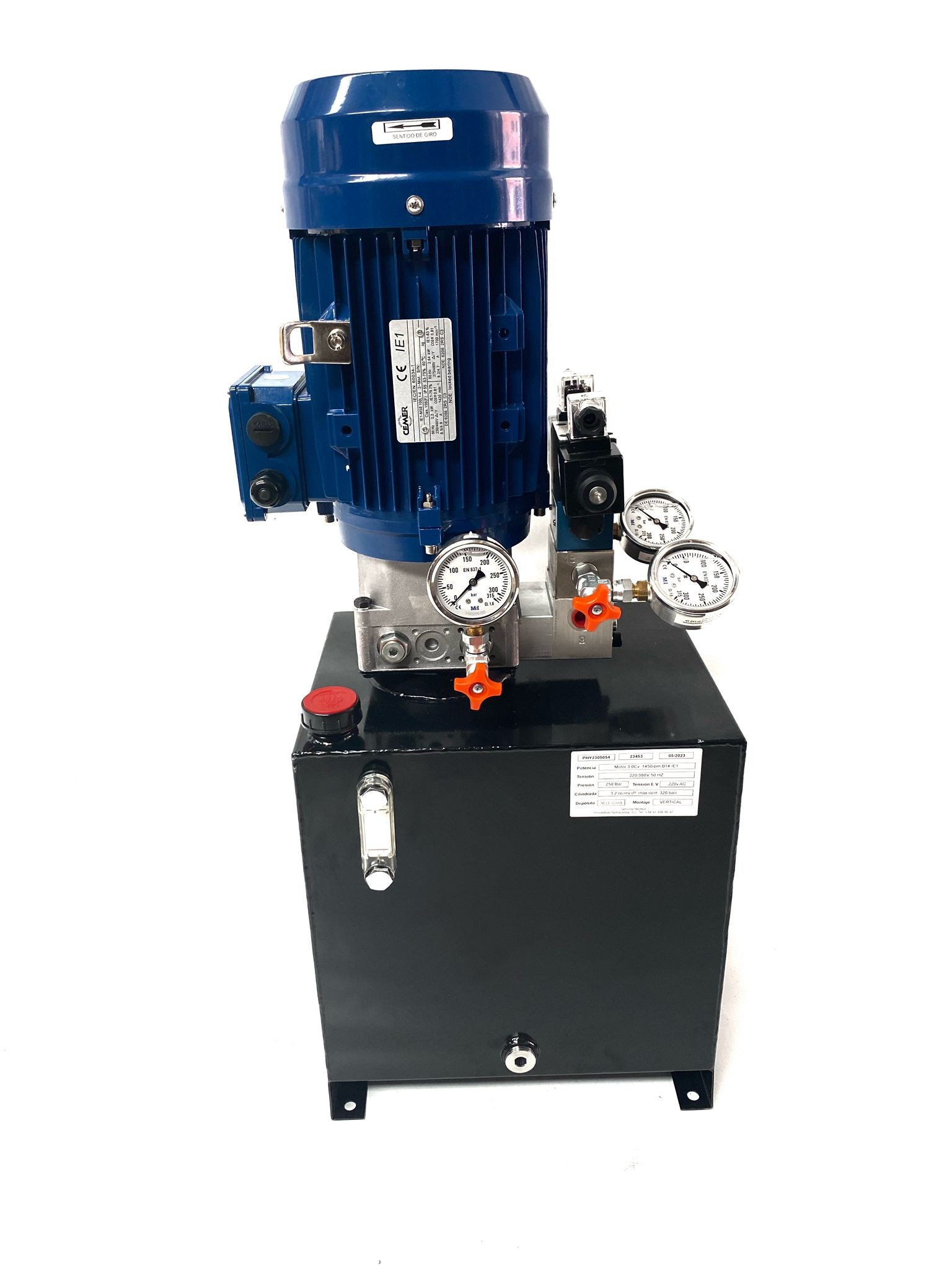

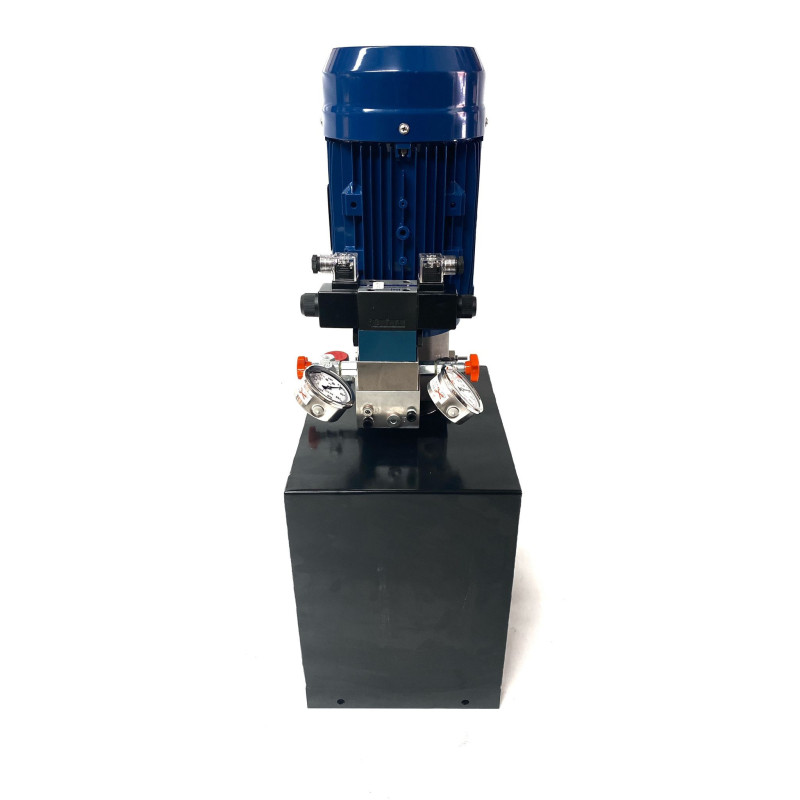

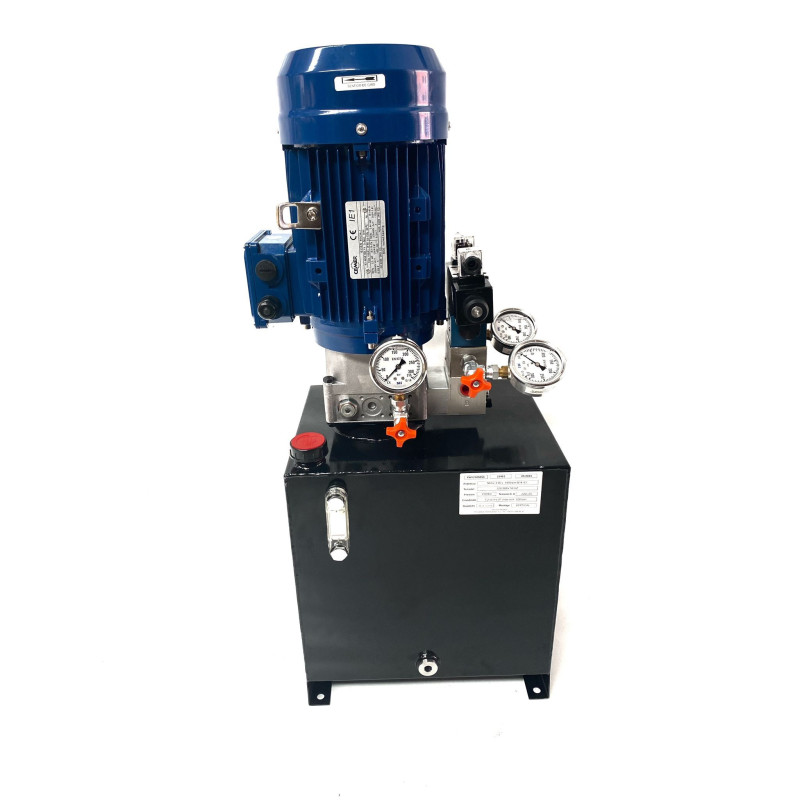

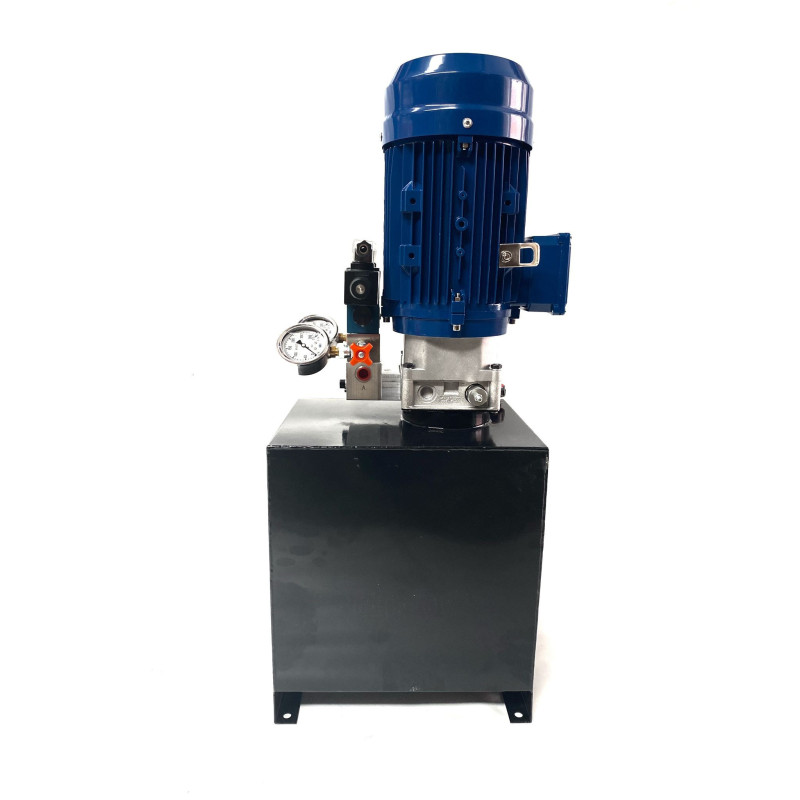

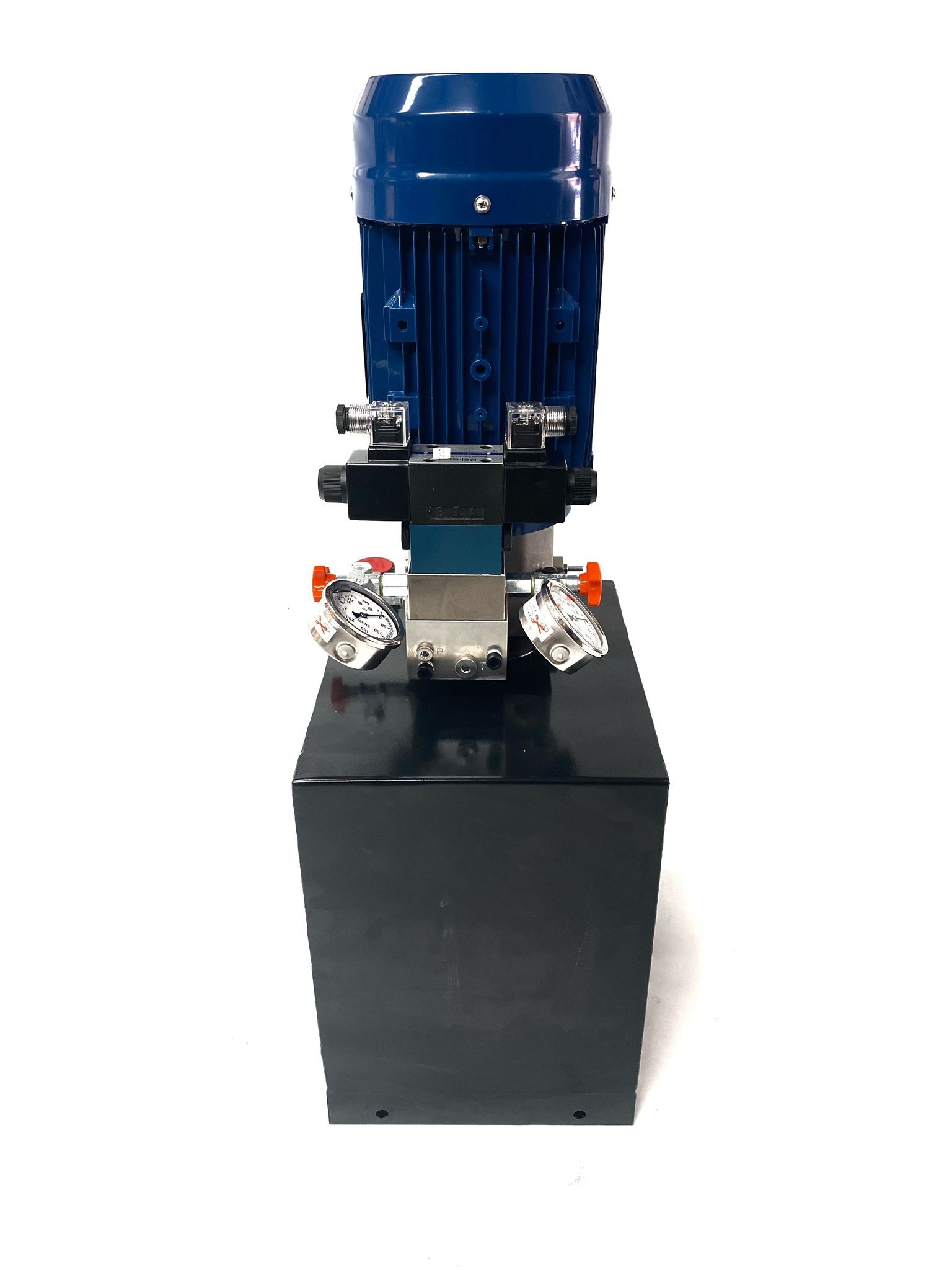

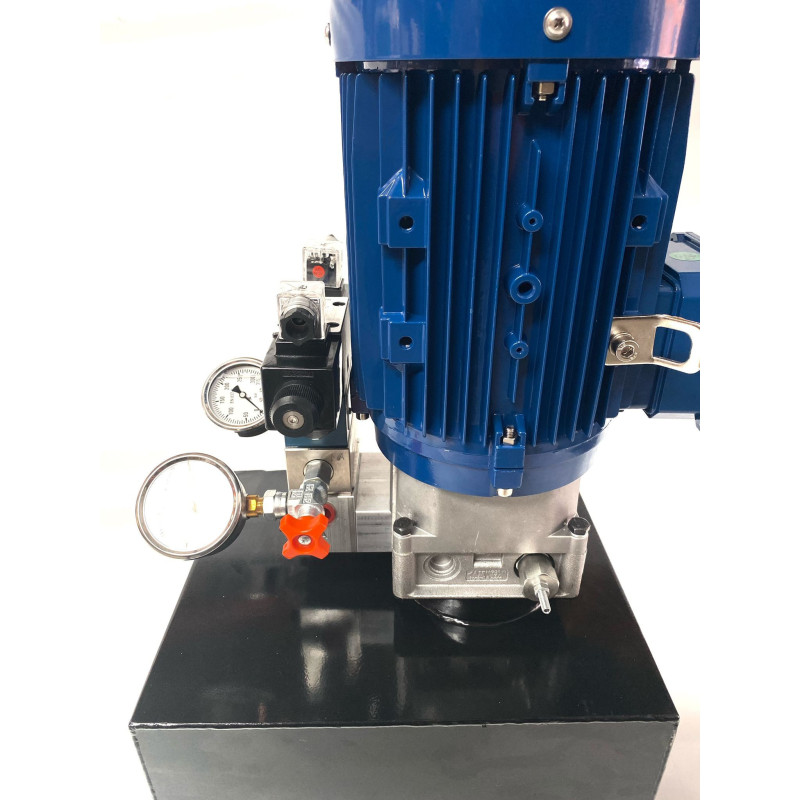

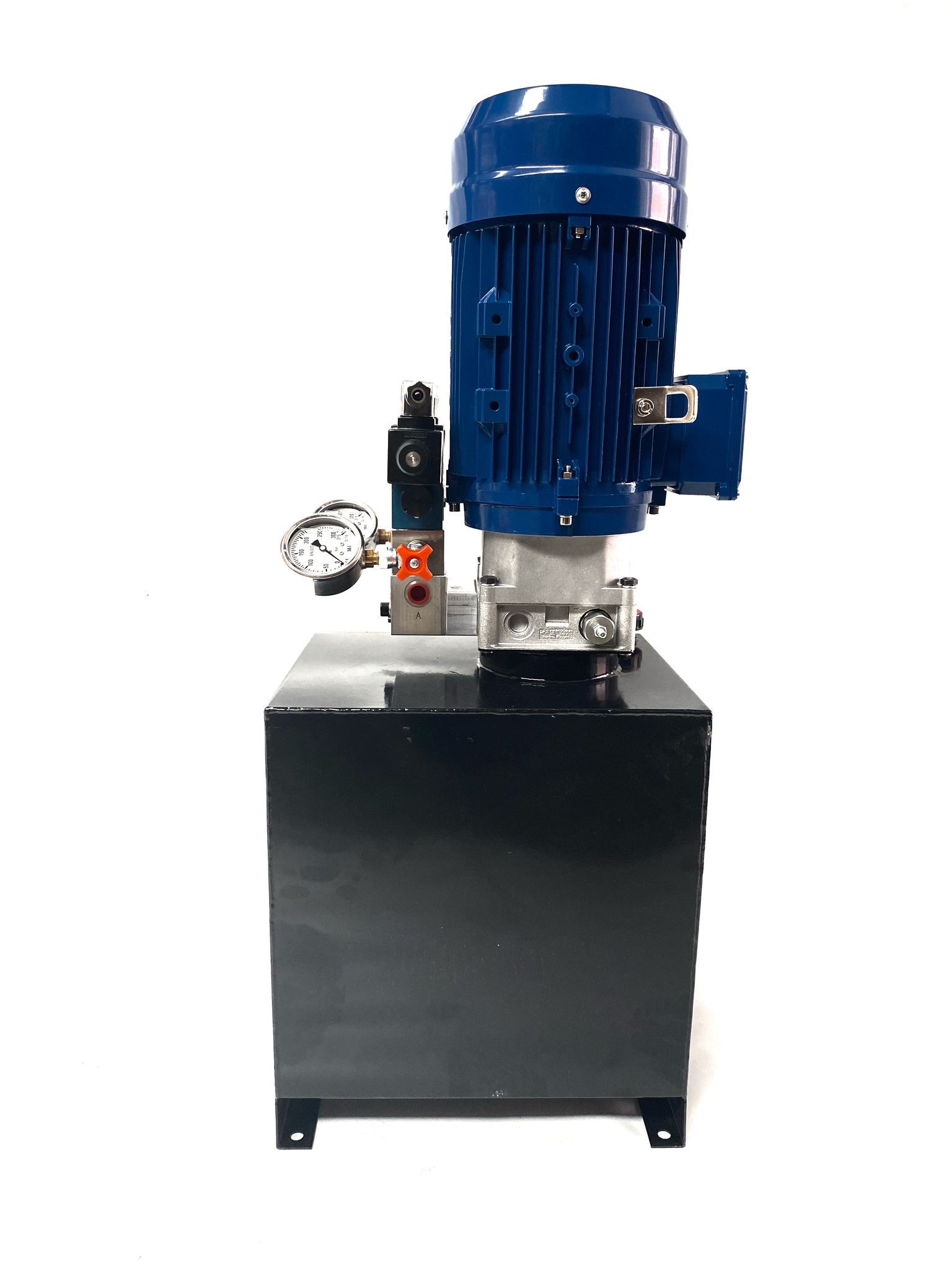

Hydraulic Power Pack 3 Cv 3 phases, 4.58 L/min, 250 bar.
- -Electric motor 3 CV, triphasic 220/380 VAC.
- -Hydraulic pump 3,2 cc/rev (4,58 L/min @ 1430 RPM)
- -Max pressure: 250 bar.
- -Solenoid Valve 4 ways, 3 positions, open centre, 220 VAC.
- -Double piloted check in A and B.
- -Pressure gauges 0-250 bar interspersed online A and B.
- -Pressure gauges 0-250 bar general pression.
- -Pressure gauge extruder (3 uds)
- -Rectangular 30L tank.
Reference:
PHYZ2305054
Add to wishlist
-Electric motor 3 CV, triphasic 220/380 VAC.
-Hydraulic pump 3,2 cc/rev (4,58 L/min @ 1430 RPM)
-Max pressure: 250 bar.
-Solenoid Valve 4 vías, 3 posictions, open centre, 220 VAC.
-Double piloted check in A and B.
-Pressure gauges 0-250 bar interspersed online A and B.
-Pressure gauges 0-250 bar general pression.
-Pressure gauge extruder (3 uds)
-Rectangular 30L tank.
Using this hydraulic power unit in conjunction with a hydraulic cylinder with a piston bore of 115 mm and a stroke of 100 mm, the cylinder will complete its stroke in 27.2 seconds.
